Product Description:
ZP-45A ZP-41F Rotary Tablet Press Machine
Main Working principles:
1. The cover of this tablet press machine is made of stainless
steel with close type. The inner tablet surface is also made of
stainless steel materials which could keep surface luster and
prevent from cross pollution, meets GMP requirement.
2. The compression area is enclosed with transparent organic glass.
Through the transparent protective cover can see the mechanical
operation of the situation clearly, and can open all of them, easy
to cleaning and maintenance.
3. Mechanical and electrical integration, variable speed operation.
Features:
- User-Friendly Operation: Supports button-type frequency conversion
speed control and PLC touch screen control (optional), meeting
different levels of operational needs.

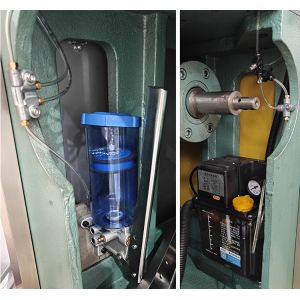

- Efficient Lubrication: Equipped with an automatic oil lubrication
system. The grease lubrication system is semi-automatic and
requires manual pressing.
- Superior Material: The standard rotary table middle mould plate is
made of high-strength OT-500-7 material. Corrosion-resistant 2Cr13
stainless steel material is available as an option.
- Stable Operation: The upper track adopts a high-strength,
wear-resistant dual-track design. The parallel rails are fully
enclosed and equipped with anti-breakage and anti-drop punch
plates, offering good rigidity and excellent dust prevention.
- Contamination Prevention Design: The upper punch of the mould is
designed with an oil collection groove. When equipped with an oil
collection ring, it effectively collects oil stains and
contaminated powder, ensuring tablet cleanliness.
Technical parameter:
| Model | ZP-45A | ZP-41F |
| Dies (sets) | 45 | 41 |
| Max. Pressure (KN) | 100 | 100 |
| Max. dia. of tablet (mm) | 13(special 16) | 16(special 22) |
| Max. Depth of fill (mm) | 15 | 15 |
| Max. Thickness of largest tablet (mm) | 6 | 6 |
| Rotational speed of revolving table(r/min) | 14-45 | 14-45 |
| Max. Capacity(pcs/h) | 243000 | 221400 |
| Diameter of rotary table (mm) | 460 | 460 |
| Diameter of middle bmould (mm) | 26 | 30 |
| Length of up and low punch pole (mm) | 22 | 22 |
| Length of the lower punch pole(mm) | 115 | 115 |
| Dimension (L*W*H)(mm) | 910x1220x1670 | 910x1220x1670 |
| Motor(KW) | 7.5kW 4L | 7.5kW 4L |
| Net Weight | 1950 | 1950 |
Support and Services:
Installation and after sales service:
Installing and Commission: We will install and test the machine in
best working condition before shipment. If customer requires our
technician to adjusting the machine and train technician at arrival
place, we will send technician there. All our expenses including
round-trip air ticket to the nearest airport, local conveyance to
your factory, Lodging & Boarding expenses shall be payable by you.
Warranty Period:
There is one year for fully machine guarantee. And in this year if
the machine broken caused by Mechanical problem, all of the spare
part is free. The service of the machine all though the machine’s
life.
After Sales Service:
1. We have 24 hours hot line for technical support.
2. We get 18 hours internet line for technical support.
3. Video camera in workshop to help you adjust and solve machine
problem in working situation.
Packing and Shipping:
Product Packaging and Shipping:
Our Rotary Tablet Press Machine is carefully packaged to ensure
safe delivery to our customers. The machine is securely wrapped in
protective materials to prevent any damage during transportation.
Additionally, the package is labeled with handling instructions and
product information for easy identification.
For shipping, we partner with reliable courier services to deliver
the Rotary Tablet Press Machine to your doorstep in a timely
manner. You can track your shipment using the provided tracking
number to know the status of your delivery.
FAQ:
A: The brand name of the Rotary Tablet Press Machine is Tianfeng.
Q: What are the available models of the Rotary Tablet Press
Machine?
A: The available models are ZP41F, ZP45A
Q: Where is the Rotary Tablet Press Machine manufactured?
A: The Rotary Tablet Press Machine is manufactured in Shanghai,
China.
Q: What certifications does the Rotary Tablet Press Machine have?
A: The Rotary Tablet Press Machine is CE/ISO certified.
Q: What are the accepted payment terms for purchasing the Rotary
Tablet Press Machine?
A: The accepted payment terms are L/C, T/T, and Western Union.
