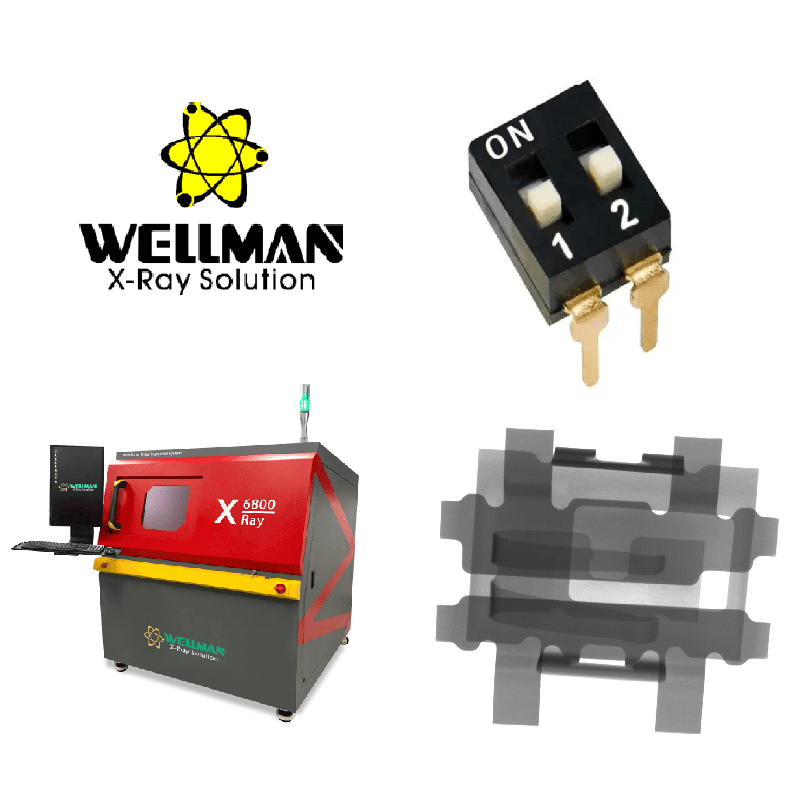

Automated 110kV 4μM SMT X Ray Inspection Equipment With Tiltable FPD

Add to Cart

SMT X-ray Inspection Machine X6800A 110kV 4μm

Working Principle

Key Advantages

Closed-type X-ray tube boasting a lifespan exceeding 10,000 hours and requiring no maintenance
New-generation 5-inch high-definition (HD) digital flat panel detector (FPD)
Tiltable FPD (supporting a 60° tilt angle) that preserves magnification capabilities without any loss
Automatic navigation window – the table shifts automatically to the position selected by a click
Inspection table of 530×530mm dimension, capable of bearing a load of up to 10 kilograms (KG)
5-axis linkage system with customizable speed options
Programmable inspection workflows designed for automated batch inspection tasks
Intuitive operational interface, allowing users to master operation with just 2 hours of training

Hardware Specifications

X-ray Source
Type	Closed, microfocus
Max tube voltage	110kV
Max tube current	200μA
Focal spot size	4μm
Function	Auto preheat
Flat Panel Detector
Effective area	130mm×130mm
Pixel size	85μm
Resolution	1536×1536
Frame rate	20fps
Tiltable angle	60°
Table
Size	530mm×530mm
Detectable area	500mm×500mm
Max load	10kg
Equipment
Magnification	Geometry 200X \| System 1500X
Inspection speed	Max 3.0s/point
Dimensions	1360mm (L) × 1365mm (W) × 1630mm (H)
Weight	1350kg
Power supply	AC110-220V 50/60HZ
Max power	1500W
Industrial PC	I5 CPU, 8G RAM, 500GB SSD
Displayer	24" HDMI LCD
Safety Features
Radiation leakage	No leakage (≤1μSv/h, international standard)
Lead glass observation window	Transparent lead glass shields radiation while allowing observation
Window/door safety interlock	X-ray automatically powers off when opened
Electromagnetic safety switch	Locks when X-ray is active
Emergency stop	Located near operation position for immediate power cutoff
Tube protection	Software prevents leaving X-ray tube on

Software Capabilities

Function Module	Operation
X-ray tube control	Mouse-click operation with real-time voltage/current display and adjustment
Status bar	Visual indicators for interlock, pre-heat, and X-ray status
Image adjustment	Adjustable brightness, contrast and gain for optimal imaging
Product list	Save and recall inspection parameters for efficiency
Navigation window	Click-to-move table positioning
Motion axis status	Real-time coordinate display
Inspection results	Organized display of measurement data with pass/fail indicators
Speed control	Adjustable axis movement speeds (slow/normal/fast)
Voids rate measurement	Automatic calculation of solder ball voids with parameter adjustment and manual void addition
Other measurements	Distance, angle, radius, perimeter, and area calculations
Automatic inspection	Manual point setting, array inspection, and automatic feature recognition

Application Examples
