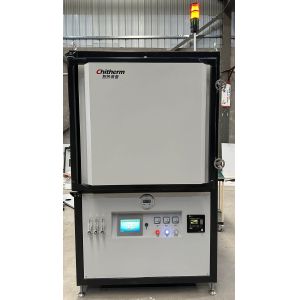

Controlled Atmosphere Melting Electric Box Furnace For Ceramic Sintering Heating

    Buy cheap Controlled Atmosphere Melting Electric Box Furnace For Ceramic Sintering Heating from wholesalers

    Buy cheap Controlled Atmosphere Melting Electric Box Furnace For Ceramic Sintering Heating from wholesalers
    • Buy cheap Controlled Atmosphere Melting Electric Box Furnace For Ceramic Sintering Heating from wholesalers
    • Buy cheap Controlled Atmosphere Melting Electric Box Furnace For Ceramic Sintering Heating from wholesalers
    • Buy cheap Controlled Atmosphere Melting Electric Box Furnace For Ceramic Sintering Heating from wholesalers
    • Buy cheap Controlled Atmosphere Melting Electric Box Furnace For Ceramic Sintering Heating from wholesalers
    • Buy cheap Controlled Atmosphere Melting Electric Box Furnace For Ceramic Sintering Heating from wholesalers
    • Buy cheap Controlled Atmosphere Melting Electric Box Furnace For Ceramic Sintering Heating from wholesalers

    Controlled Atmosphere Melting Electric Box Furnace For Ceramic Sintering Heating

    Ask Lasest Price
    Model Number : MBF40-11N
    Brand Name : Chitherm
    Price : Negotiable
    Delivery Time : Customized
    Payment Terms : Customized
    Supply Ability : 50 Sets/Year
    Certification : ISO
    • Product Details
    • Company Profile

    Controlled Atmosphere Melting Electric Box Furnace For Ceramic Sintering Heating

    Controlled Atmosphere Melting High Temperature Box Furnace For Ceramic Sintering Heating
    Product Specifications
    AttributeValue
    Range of ApplicationsIndustrial
    TypeElectric Holding Furnace
    UsageCeramic Sintering
    FuelElectric
    AtmosphereAir/Nitrogen
    Effective Chamber Dimensions330*200*660mm(W*H*D)
    Thermocouple TypeN
    Transport PackageWooden Packaging
    Specification1150*1970*1460mm(W*H*D)
    TrademarkChitherm
    OriginChina
    HS Code8514101000
    Supply Ability50 Sets/Year
    CustomizationAvailable
    CertificationISO
    Place StyleVertical
    Product Description

    1100°C Mbf40-11n Atmosphere Box Furnace Melting Furnace 330mm × 200mm × 660mm for Ceramic Sintering Heating

    Applications

    The industrial kiln is primarily utilized for the sintering processes of lithium battery cathode and anode materials, and is also applicable to the sintering of magnetic materials, electronic components, electronic ceramics, and related products.

    Technical Specifications
    • Rated Temp: 200-1100°C
    • Max Temp: 1150°C
    • Effective Dimensions: 330 × 200 × 660mm (W×H×D)
    • Heating Method: Ceramic tube-encased silicon carbide rod
    • Process Atmosphere: Air or Nitrogen
    • Temperature Control Stability: ±1°C with PID parameter auto-tuning
    • Temperature Uniformity: Better than ±5°C
    • Thermocouple: Type N
    • Temperature Control Points: Upper and lower points with single measurement point in middle
    • Process Steps: 9 steps
    • Oxygen Content Detection: Micro-oxygen analyzer for real-time monitoring
    • Exhaust: Top-mounted chimney with manual exhaust volume adjustment
    • Alarm System: Sound and light alarms for over temperature, thermocouple failure
    • Max Heating Power: ≤25kW
    • Surface Temperature Rise: ≤40°C
    • Furnace Dimensions: 1150×1970×1460mm (W×H×D)
    • Appearance Color: Light gray
    1100°C Mbf40-11n Atmosphere Box Furnace with dimensions 330mm*200mm*660mm
    Key Components
    1. Furnace frame
    2. Chimney
    3. Furnace chamber
    4. Furnace door
    5. Heating element
    6. Sagger (ceramic container used in kilns)
    7. Roller bar (for moving ceramics during firing)
    Delivery List
    ItemNoteQTY
    Basic CompositionsFurnace1 Unit
    Certificates of InspectionFurnace and major purchased components1 Set
    Technical DocumentsFurnace specifications, technical documents of major purchased components1 Set
    Key PartsHeating Elements (ceramic tube-encased silicon carbide rod)1 Set
    Temperature ControllerAzbil1 Set
    Touch screen1 Set
    SparesSilicon carbide rod2 PC
    Facility Requirements
    • Environmental conditions: Temperature 0-40°C, humidity ≤80% RH, no corrosive gas, no strong airflow disturbance
    • Process air conditions: 99.999% purity nitrogen, pressure 0.2-0.4Mpa, gas consumption 4-12m³/h
    • Ventilation system: Non-contact access to user pumping system, capacity >15m³/h
    • Power conditions: Capacity >35kVA, 3 phases 5 lines, voltage 220/380V, frequency 50Hz
    • Installation site: 2500mm×2000mm×3000mm (W×H×D), area >5m²
    1100°C Mbf40-11n Atmosphere Box Furnace with dimensions 330mm*200mm*660mm
