    Bf580-17 High Temperature Bell Jar Furnace For Air And O2 Atmosphere

    BF580-17 High-Temperature Bell Jar Furnace
    Product Overview

    Industrial-grade electric bell jar furnace designed for high-temperature ceramic sintering applications, featuring precise temperature control up to 1750ºC.

    Key Specifications
    AttributeValue
    Application RangeIndustrial
    Furnace TypeElectric Holding Furnace
    Primary UsageCeramic Sintering
    AtmosphereAir and O₂
    Chamber Dimensions1200×600×800mm (D×W×H)
    Temperature Range1700ºC-1750ºC
    Warranty1 Year
    Applications

    This high-temperature furnace is engineered for sintering processes in advanced ceramics, magnetic materials, and electronic ceramic components manufacturing.

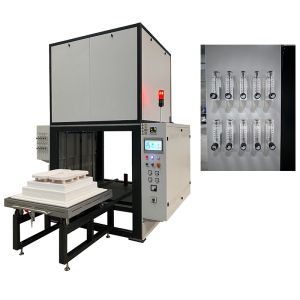

    BF580-17 High-Temperature Bell Jar Furnace exterior view Detailed view of BF580-17 furnace chamber and components
    Technical Specifications
    • Effective Chamber Size: 1200×600×800mm (D×H×W)
    • External Dimensions: 2880×3600×2240mm (excluding tracks and control cabinet)
    • Temperature Range: 1700ºC~1750ºC
    • Heating Method: Silicon molybdenum rod heating elements
    • Insulation: Alumina products/ceramic fiber material
    • Control System: Imported Japanese intelligent temperature controller
    • Power Requirements: 220/380VAC 50Hz, 120kW max power
    • Equipment Weight: Approximately 8000kg
    Standard Delivery Contents
    ItemDescriptionQuantity
    Basic ComponentsFurnace assembly1 SET
    CertificatesComponent inspection certificates1 SET
    Technical DocumentsOperation manuals and technical specifications1 SET
    Heating ElementsU-shaped silicon molybdenum heaters1 SET
    Control SystemTemperature controller, PLC, and touch screen1 SET
    Spare PartsAdditional heating element1 PC
    Operating Requirements
    • Environment: 0-40ºC, ≤80% humidity, no corrosive gases
    • Atmosphere: Dry, clean compressed air (0.4-0.8MPa)
    • Ventilation: Exhaust system with >50 m³/h capacity
    • Floor Load: >1000 Kg/m², vibration-free
    • Power: >160kVA, 3-phase 380V supply
    • Space Requirements: Minimum 6×4×4m installation area
    Frequently Asked Questions
    What products does Chitherm offer?

    We specialize in high-temperature industrial furnaces including bell furnaces, vacuum furnaces, tube furnaces, rotary kilns, and customized thermal processing solutions.

    What pre-sales services are available?

    Our technical team provides comprehensive consultation services and custom engineering solutions to match your specific process requirements.

    What are Chitherm's core strengths?

    As an integrated R&D and manufacturing enterprise, we combine patented technologies with extensive industry experience to deliver reliable, high-performance thermal processing equipment.

    Chitherm manufacturing facility overview Chitherm quality control process
