    Chitherm Mbf40-11n 1100c Intelligent Nitrogen Box Furnace

    Ask Lasest Price
    Brand Name : Chitherm
    Model Number : MBF40-10N
    Price : Negotiable
    Payment Terms : Customized
    Supply Ability : 50 Sets/Year
    Delivery Time : Customized
    Certification : ISO
    • Product Details
    • Company Profile

    Chitherm Mbf40-11n 1100c Intelligent Nitrogen Box Furnace

    Chitherm MBF40-11N 1100°C Intelligent Nitrogen Box Furnace
    Product Specifications
    AttributeValue
    Range of ApplicationsIndustrial
    TypeElectric Holding Furnace
    UsageCeramic Sintering
    FuelElectric
    AtmosphereAir
    Effective Chamber Dimensions330*200*660mm (W*H*D)
    Transport PackageWooden Packaging
    Specification1150*1970*1460mm (W*H*D)
    TrademarkChitherm
    OriginChina
    HS Code8514101000
    Supply Ability50 Sets/Year
    CustomizationAvailable
    CertificationISO
    Place StyleVertical
    Product Description

    The MBF40-10N industrial box furnace is designed for ceramic sintering applications with temperature ranges from 850-1000°C, featuring advanced atmosphere control and uniform heating technology.

    Key Features
    • Silicon carbide heating elements resistant to acid/alkali corrosion
    • Dual heating element arrangement for uniform temperature distribution
    • Alumina inner chamber with ceramic fiber outer insulation
    • Precision temperature control with ±5°C uniformity
    • Comprehensive safety alarms and protection systems
    Technical Parameters
    • Model: MBF40-10N Atmosphere Box Furnace
    • Rated Temperature: 850-1000°C
    • Effective Dimensions: 330×200×660mm (W×H×D)
    • Heating Power: ≤25kW
    • Power Supply: Three-phase, 220/380V, 50Hz
    • Temperature Control: 20 program steps, two-point control

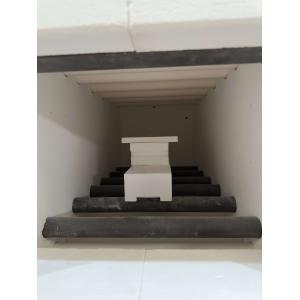

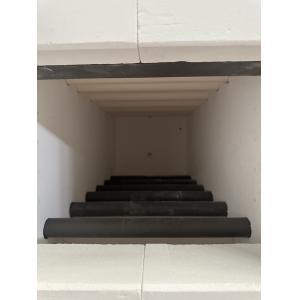

    MBF40-10N Atmosphere Box Furnace showing chamber and heating elements
    Key Components
    • Furnace frame and chamber
    • Ceramic tube-encased silicon carbide heating elements
    • Azbil temperature controller with touch screen
    • Safety chimney and door interlock system
    Delivery Contents
    ItemDescriptionQuantity
    Basic FurnaceComplete furnace assembly1 PC
    CertificatesInspection documents1 Set
    Technical DocumentsSpecifications and manuals1 Set
    Heating ElementsSilicon carbide rods1 Set
    Temperature ControllerAzbil system1 Set
    Touch ScreenControl interface1 Set
    Spare PartsSilicon carbide rod1 PC
    Installation Requirements
    • Environment: 0-40°C, ≤80% RH, no corrosive gases
    • Process gas: 99.999% nitrogen at 0.2-0.4Mpa
    • Ventilation: Minimum 15m³/h capacity
    • Power: 35kVA, 3-phase 220/380V, 50Hz
    • Space: Minimum 2500×2000×3000mm (W×H×D)
    Certifications
    ISO certification for Chitherm industrial furnaces
    Packaging & Shipping
    Wooden packaging for industrial furnace shipping
    About Chitherm

    Hefei Chitherm Equipment Co., Ltd. specializes in the R&D and manufacturing of high-quality industrial and laboratory furnaces for applications in advanced ceramics, electronics, powder metallurgy, and new energy sectors. Our product range includes bell furnaces, box furnaces, vacuum furnaces, and specialized kilns for material processing.

    Our Capabilities
    • Custom furnace solutions for specialized applications
    • ISO certified manufacturing processes
    • Comprehensive technical support and service
    • Patented technologies in thermal processing
    Chitherm manufacturing facility showing furnace production Quality control inspection of industrial furnaces
