    1100º C Mbf40-11n Atmosphere Box Furnace Melting Furnace

    Ask Lasest Price
    Brand Name : Chitherm
    Model Number : MBF40-10N
    Price : Negotiable
    Payment Terms : Customized
    Supply Ability : 50 Sets/Year
    Delivery Time : Customized
    Certification : ISO
    • Product Details
    • Company Profile

    1100º C Mbf40-11n Atmosphere Box Furnace Melting Furnace

    1100º C MBF40-11N Atmosphere Box Furnace Melting Furnace
    Product Specifications
    AttributeValue
    Range of ApplicationsIndustrial
    TypeElectric Holding Furnace
    UsageCeramic Sintering
    FuelElectric
    AtmosphereAir
    Effective Chamber Dimensions330*200*660mm (W*H*D)
    Transport PackageWooden Packaging
    Specification1150*1970*1460mm (W*H*D)
    TrademarkChitherm
    OriginChina
    HS Code8514101000
    Supply Ability50 Sets/Year
    CustomizationAvailable
    CertificationISO
    Place StyleVertical
    Product Description

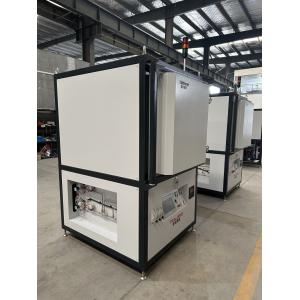

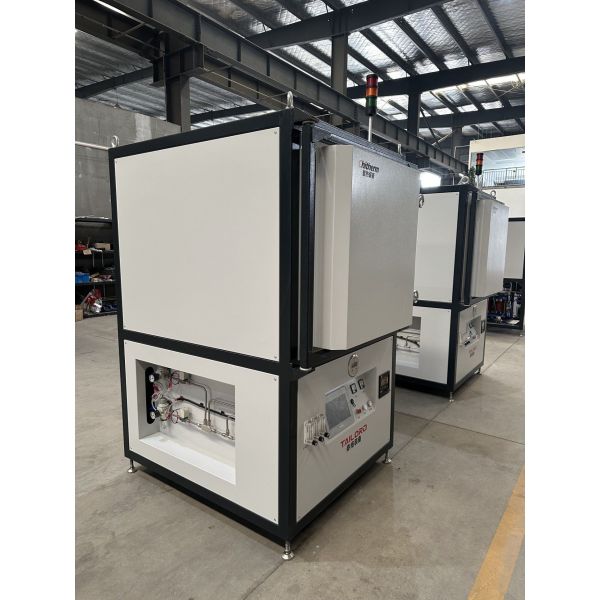

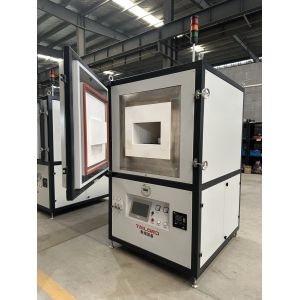

    MBF40-11N Atmosphere Box Furnace exterior view MBF40-11N Atmosphere Box Furnace interior chamber
    Key Features
    • Uses silicon carbide rods inserted in ceramic tubes as heating elements, resistant to acid and alkali corrosion
    • Heating elements arranged both above and below for uniform temperature distribution
    • Easy to operate and suitable for various laboratory processes
    Performance Parameters
    • Product Model: MBF40-10N Atmosphere Box Furnace
    • Rated Temperature: 850-1000°C
    • Maximum Temperature: 1000°C
    • Effective Dimensions: 330mm × 200mm × 660mm (W×H×D)
    • Furnace Chamber Material: Inner layer made of alumina products, outer layer using ceramic fiber inorganic standard board
    • Heating Elements: Silicon carbide rods inserted in ceramic tubes
    • Temperature Uniformity: ±5°C (tested at 850°C in empty furnace)
    • Program Steps: 20 steps
    • Temperature Control: Two-point control (top and bottom), one measurement point in middle
    • Alarm Protection: Interlock between heating and door operation, audible/visual alarms for overtemperature, thermocouple break, and low pressure
    • Surface Temperature Rise: ≤40°C
    • Maximum Heating Power: ≤25kW
    • Power Supply: Three-phase, 220/380V, 50Hz, capacity >35kVA

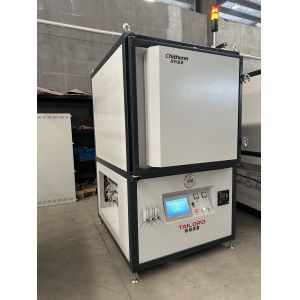

    MBF40-11N furnace control panel MBF40-11N furnace interior details
    Delivery List
    ItemNoteQTY
    Basic CompositionsFurnace1 PC
    Certificates of InspectionFurnace and major purchased components1 Set
    Technical DocumentsFurnace specifications, technical documents of major purchased components1 Set
    Key Parts - Heating ElementsCeramic tube-encased silicon carbide rod1 Set
    Key Parts - Temperature ControllerAzbil1 Set
    Key Parts - Touch Screen1 Set
    Spares - Silicon Carbide Rod1 PC
    Facility Requirements
    • Environmental conditions: Temperature 0-40ºC, humidity ≤80% RH, no corrosive gas, no strong airflow disturbance
    • Process air conditions: 99.999% purity nitrogen, pressure 0.2-0.4Mpa, gas consumption 4-12m³/h
    • Ventilation system: Non-contact access to user pumping system, capacity >15m³/h
    • Power conditions: Capacity >35kVA, 3 phases 5 lines, voltage 220/380V, frequency 50Hz
    • Installation site: 2500mm×2000mm×3000mm (W×H×D), area >5m²
    Packaging & Shipping
    MBF40-11N furnace packaging for shipping
    Our Advantages
    MBF40-11N furnace quality control process MBF40-11N furnace manufacturing facility MBF40-11N furnace technical team
