    1150º C The Mbf40-11n Type Atmosphere Box Furnace Nitrogen Electric Furnace Industrial Furnace

    Ask Lasest Price
    Brand Name : Chitherm
    Model Number : MBF40-10N
    Price : Negotiable
    Payment Terms : Customized
    Supply Ability : 50 Sets/Year
    Delivery Time : Customized
    Certification : ISO
    • Product Details
    • Company Profile

    1150º C The Mbf40-11n Type Atmosphere Box Furnace Nitrogen Electric Furnace Industrial Furnace

    MBF40-11N Atmosphere Box Furnace - Nitrogen Electric Industrial Furnace (1150°C)
    Key Specifications
    AttributeValue
    Range of ApplicationsIndustrial
    TypeElectric Holding Furnace
    UsageCeramic Sintering
    FuelElectric
    AtmosphereAir
    Effective Chamber Dimensions330×200×660mm (W×H×D)
    Specification1150×1970×1460mm (W×H×D)
    CertificationISO
    Product Overview

    The MBF40-10N atmosphere box furnace features silicon carbide rods inserted in ceramic tubes as heating elements, offering excellent resistance to acid and alkali corrosion. With heating elements arranged both above and below, it ensures uniform temperature distribution throughout the furnace chamber.

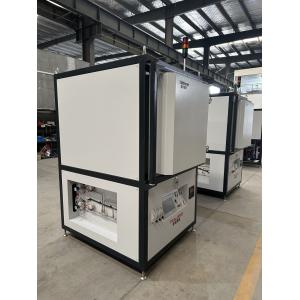

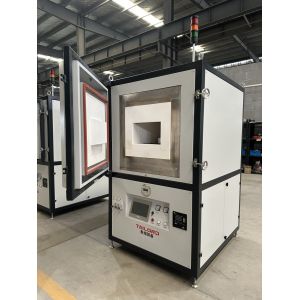

    MBF40-11N Atmosphere Box Furnace exterior view MBF40-11N Atmosphere Box Furnace chamber detail
    Technical Specifications
    ParameterValue
    Rated Temperature850-1000°C
    Maximum Temperature1000°C
    Furnace Chamber MaterialInner layer: alumina products, Outer layer: ceramic fiber inorganic standard board
    Heating ElementsSilicon carbide rods in ceramic tubes
    Program Steps20 steps
    Temperature ControlTwo-point control (top and bottom) with middle measurement point
    Surface Temperature Rise≤40°C
    Temperature Uniformity±5°C at 850°C
    Standard Delivery Contents
    ItemDescriptionQuantity
    FurnaceMain unit1 PC
    CertificatesFurnace and major components1 Set
    Technical DocumentsSpecifications and component details1 Set
    Heating ElementsCeramic tube-encased silicon carbide rod1 Set
    Temperature ControllerAzbil brand1 Set
    Touch ScreenControl interface1 Set
    Spare Silicon Carbide RodReplacement heating element1 PC
    Installation Requirements
    • Environment: Temperature 0-40ºC, humidity ≤80% RH, no corrosive gas or strong airflow
    • Process Air: 99.999% purity nitrogen, pressure 0.2-0.4Mpa, consumption 4-12m³/h
    • Ventilation: Non-contact access to pumping system (>15m³/h capacity)
    • Power: >35kVA, 3-phase 5-wire, 220/380V, 50Hz
    • Space: Minimum 2500×2000×3000mm (W×H×D), >5m² area
    MBF40-11N furnace packaging for shipping MBF40-11N furnace quality control process MBF40-11N furnace manufacturing facility MBF40-11N furnace technical specifications
