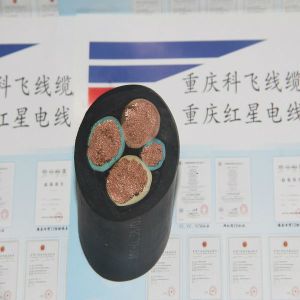

High Tensile Strength Stranded Copper Conductor EPR Insulation
Rubber Sheath Flexible Power Cable Wire for Industry Use
High Tensile Strength Stranded Copper Conductor EPR Insulation
Rubber Flexible Power Cable Wire for Frequent Movement Electrical
Connection. This Heavy-duty General-purpose Rubber Sheathed
Flexible Cable is a durable power supply solution for industrial
and engineering applications, designed to withstand complex and
harsh environments through its rubber-insulated layer and
protective sheath.
This Cable can be classified into three types based on the
mechanical forces they are subjected to: light, medium, and heavy.
The long-term allowable operating temperature of cables is
generally not more than 65℃.
Product Specifications
- Conductor: Stranded Copper Core - multi-strand structure enhances flexibility
for bending, dragging and threading
- Insulation: EPR (Ethylene Propylene Rubber) - excellent insulation with oil
and moisture resistance
- Sheath: Rubber with wear resistance, oil resistance and weather resistance
properties
- Configuration: Single Core, 2cores, 3cores, 4cores, 5cores
- Voltage Rating: 450/750V
- Temperature Range: -30°C to +70°C (90℃ max)
- Size: 6mm, 10mm, 25mm, 35mm, 50mm, 70mm, 95mm, 120mm, 150mm and more
- Filler: Rope
- Special Features: Movable, Flexible, oil resistance, wear resistance, small bending
radius, tensile resistance
Applications
This flexible rubber cable offers superior wear resistance, oil
resistance, weather resistance, high temperature resistance, and
mechanical damage protection, making it ideal for various complex
electrical environments:
- Industrial sector: Power supply for mobile devices including construction machinery
(excavators, cranes, concrete pump trucks) and industrial
automation equipment (machine tools, conveyor belts, robot drag
chain systems)
- Agricultural sector: Power lines for agricultural machinery (harvesters, tractors) and
agricultural electrification scenarios
- Construction sector: Temporary power distribution for construction site equipment,
lighting, and vibration rods
- Special environments: Port/ship shore power connections, outdoor installations (street
lamps, billboards), high-temperature areas (metallurgical furnaces,
boiler rooms with silicone rubber sheath variants)
Technical Characteristics
Temperature Rating
- Fixed: -30°C to +60°C
- Fixed protected installations: +85°C
- Flexed: -15°C to +60°C
- Insulation tested to +90°C
Minimum Bending Radius
- Fixed: 4 x overall diameter
- Flexed: 6 x overall diameter
| Product Name | H07RN-F Rubber cable |
|---|
| Brand | Ke Fei Te |
|---|
| Model | YC/H07RN-F |
|---|
| Conductor Material | Annealed copper conductor (Multiple strands of fine copper wire
twisted together) |
|---|
| Insulation Material | EPR(Ethylene-Propylene Rubber |
|---|
| Jacket | General Rubber Sheath |
|---|
| Color | Black |
|---|
| Shape | Round wire |
|---|
| Feature | Flexible, oil resistance, wear resistance, soft and tensile
resistance |
|---|
Company Profile
Chongqing Kefei Cable Group Co., Ltd specializes in R&D and production of rubber cables for 40
years. As a large enterprise in cable production, we manufacture
various electrical cables including mining cables, rubber sheath
cable series, and shield machine special high voltage cables. Our
flexible cable series benefits from over 20 years of expertise,
with capability to customize special cables according to customer
requirements.
Our products are globally distributed and widely used in coal
mines, power stations, transportation and other fields, recognized
for excellent quality and after-sales service.
Our Advantages
- Advanced Technology
- High Quality Design
- Perfect Testing Equipment
- Strict Quality Control
- Mature Process Flow
Production Equipment
Exhibition
Certification
Packing & Delivery
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer. We only produce the best
quality, and you can rest assured of the quality.
Q: Can you produce and manufacture products according to customer
requirements?
A: Yes, we can customize the product according to your
requirements.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always
final Inspection before shipment.
Q: How can i place an order?
A: Please provide the details of your requirements as clear as
possible. So we can send you the offer at the first time. For
designing or further discussion, it is better to contact us with
Skype / email / phone, in case of any delays.
