Wear Resistance Rubber Sheathed Flexible Cable with Stranded Copper
Conductor for Complex and Harsh Electrical Usage Environments
Extra Soft Wear Resistance Outdoor Use Rubber Flexible Power Cable
with EPR Insulation and Stranded Copper Conductor. Customizable
Size Rubber Sheath EPR Insulation Stranded Copper Conductor
Flexible Power Cable for demanding electrical environments.
450/750V H07RN-F Heavy Duty Rubber Flexible Cable with EPR
Insulation and Stranded Copper Conductor.

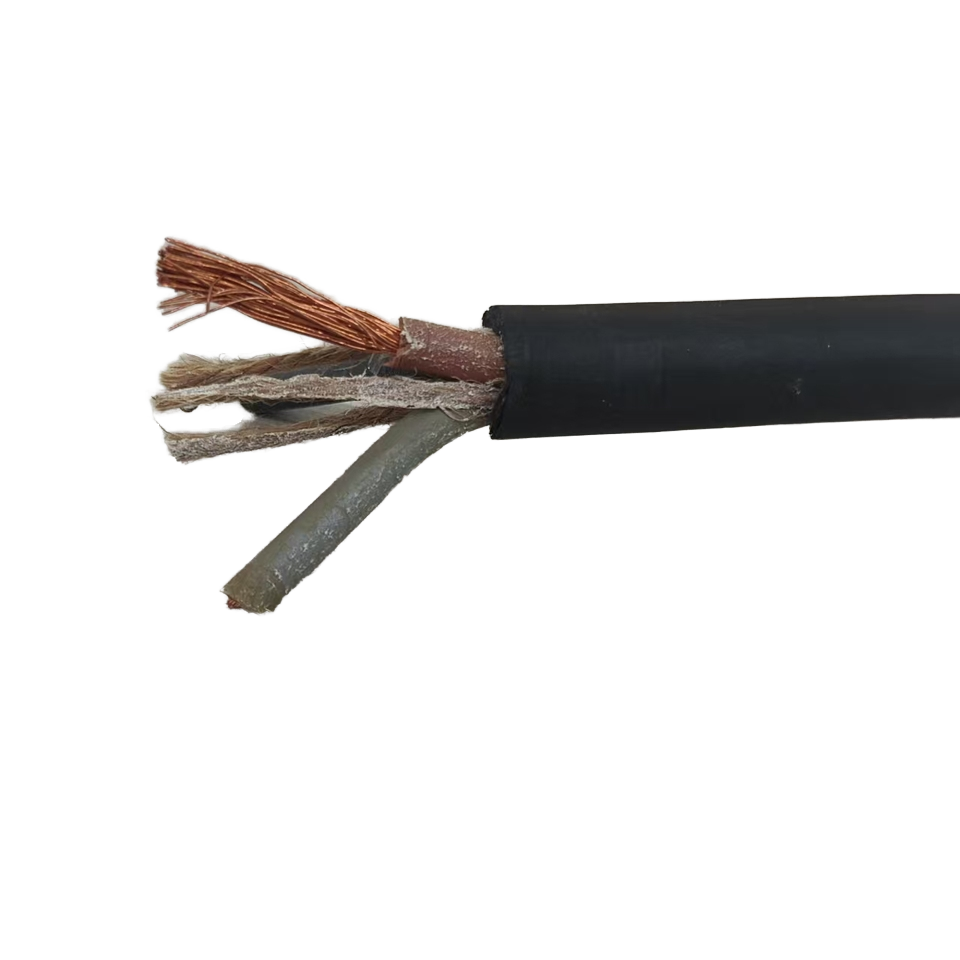

This multi-core power supply cable features a flexible movable
design with multiple strands of thin copper wire as conductor, EPR
rubber insulation and rubber sheath. Its softness, wear resistance
and tensile resistance make it ideal for various electrical
equipment in both indoor and outdoor environments, particularly in
hot environments such as power generation, metallurgy and chemical
industries.
Product Specifications
- Conductor: A copper conductor made by twisting multiple thin copper
wires together
- Insulation: EPR (Ethylene Propylene Rubber)
- Sheath: CPE
- Configuration: Single Core, 2cores, 3cores, 4cores, 5cores
- Voltage Rating: 450/750V
- Temperature Range: -30°C to +70°C (90℃ max)
- Size: 1mm, 1.5mm, 2.5mm, 4mm, 6mm, 10mm, 25mm, 35mm, 50mm, 70mm,
95mm, 120mm ,150mm and more
- Filler: Tensile Resistance Rope
- Special Features: Movable, Flexible, oil resistance, wear
resistance, small bending radius, tensile resistance,Resistant to
mechanical damage
Applications
This Flexible rubber cable benefits from core advantages such as
wear resistance, oil resistance, weather resistance, high
temperature resistance, resistance to mechanical damage, and good
flexibility. It can be adapted to various complex and harsh
electrical environments.
- Power supply for heavy mechanical equipment
- Mining equipment
- Power supply for construction equipment
- Temporary power supply system
- Temporary outdoor work
- Emergency rescue power supply
Technical Characteristics
Temperature Rating
- Fixed: -30°C to +60°C
- Fixed protected installations: +85°C
- Flexed: -15°C to +60°C
- Insulation tested to +90°C
Minimum Bending Radius
- Fixed: 4 x overall diameter
- Flexed: 6 x overall diameter
Product Specifications
| Product Name | H07RN-F Rubber cable |
| Brand | Ke Fei Te |
| Model | YC |
| Conductor Material | Annealed copper conductor |
| Insulation Material | EPR |
| Jacket | General Rubber Sheath |
| Color | Black |
| Shape | Round wire |
| Feature | Flexible, oil resistance,wear resistance, Inflaming retarding, soft
and tensile resistance |
