Advanced Plug Socket Tester with Digital Display | Button-Control
Electrical Safety Testing Equipment for Power Plug and Socket
Inspection
Product Introduction

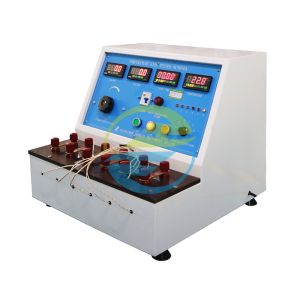

In electrical safety testing, accuracy means everything. The HONG CE HC9910A Plug Socket Tester is engineered to deliver consistent and clear results during plug
and socket inspection. It combines modern digital control with
ergonomic design—making each operation intuitive, fast, and
precise.
Built by HONG CE, a trusted original manufacturer (OEM/ODM) specializing in
electrical testing equipment, this device embodies industrial
craftsmanship and intelligent innovation. Whether you’re testing
household plugs, industrial sockets, or extension interfaces, the
HC9910A ensures your products meet safety compliance with
confidence and efficiency.
Product Features
- Digital Display Interface – Clear real-time readings of voltage, resistance, and test
status.
- Button-Control Operation – Simplifies test initiation with tactile and responsive control.
- Multi-Function Testing – Supports insulation, polarity, earth continuity, and contact
resistance tests.
- High Precision Measurement Circuit – Ensures stable and reliable data output.
- Wide Test Compatibility – Suitable for 2-pin, 3-pin, and multi-standard plug and socket
types.
Applications
- Quality inspection for power plug and socket manufacturers
- Laboratory testing for product certification and compliance verification
- Production line sampling and end-of-line electrical safety check
- Electrical maintenance and field service testing
- R&D departments for new product validation
International Reference Standards
Complies with Article 19 and Figure 44 of IEC60884-1 "Plugs and
Sockets for Household and Similar Purposes Part 1: General
Requirements". This standard strictly regulates the performance and
safety indicators of plugs and sockets to ensure the safety and
reliability of the product in actual use.
Parameter with Plug Socket Tester:
| Item | Parameters |
| Test station | 6 |
| Test current | 0-125A adjustable |
| Test voltage | Less than 12V |
| Timer | 0-9999s, adjustable, digital display |
| Temperature instruments | 0-150°C, digital display |
| Power supply | 220V, 50HZ |
| Test object | Plug pin |
| Standard | IEC60884-1 Fig 44 Clause 19 |
Connecting wire and current matching table:
| Sizes of the wire (single copper core) | Max. Load Current |
| 1.5mm² | 20A |
| 2.5mm² | 28A |
| 4mm² | 38A |
| 6mm² | 48A |
| 10mm² | 65A |
| 16mm² | 88A |
| 25mm² | 113A |
| 50mm² | 142A |
| 70mm² | 171A |
| 95mm² | 218A |
| 120mm² | 265A |
| 150mm² | 305A |
| 185mm² | 355A |
| 240mm² | 410A |
| 300mm² | 490A |
| 400mm² | 560A |
| 500mm² | 650A |
| 630mm² | 750A |
| 2.5mm² | 880A |
| 800mm² | 1100A |
Test Items
- Wiring Polarity Test: Accurately determine the connection sequence
of the live, neutral, and ground wires;
- Voltage Accuracy: Measure the actual output voltage of the outlet;
- RCD Response Time: Test the time it takes for the residual current
device (RCD) to operate;
- Ground Continuity: Verify the reliability of the grounding
connection;
- Line Impedance: Check whether the loop impedance meets safety
requirements;
- Outlet Aging Assessment: Determine the outlet's usage status based
on voltage stability.
Detail pictures:
Our advantage service:
We have our own developing and designing team, which ensure our own
technological and innovative products for customers.
For any customers who have new idea about some products, just let
us know, we can according to your idea provide a unique design of
the products.
