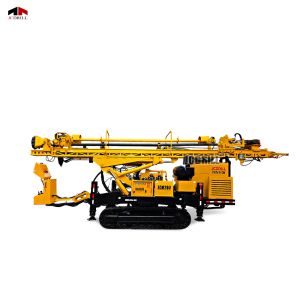

JCM200 Multifunctional RC DTH Hydraulic Crawler Drilling Rig

Products Description

The JCM200 hydraulic crawler drilling rig is engineered as a powerful, multi-purpose drilling platform built for demanding geological and construction tasks. Designed for adaptability, it handles DTH drilling, anchoring, auger boring, rock drilling, exploration, and blasting hole projects with precision and reliability.

Featuring an automatic rod handling system, integrated mud pump, and efficient dust collection unit, the JCM200 ensures smooth operation, faster drilling cycles, and reduced on-site labor. Its advanced hydraulic control allows fine adjustment of torque, rotation speed, and feed pressure, enabling stable performance across complex formations.

Driven by a 247 kW Weichai WP10-330-247 diesel engine, the rig delivers consistent power and efficiency while minimizing fuel consumption. The crawler chassis with full 360° rotation and high-leg supports guarantees excellent maneuverability, making it suitable for both confined urban job sites and rugged mountain terrain.

The JCM200 is ideal for geological surveys, slope protection, deep foundation reinforcement, geothermal wells, water wells, and mining blast holes—a single rig that meets multiple drilling demands with ease and efficiency.

Parameter

Features

• One-Rig Multi-Purpose Design – Supports various drilling techniques including DTH, auger, and anchor drilling.
• Smart Automation – Automatic rod changer improves efficiency, safety, and precision.
• Integrated Systems – Built-in mud pump and dust collector reduce auxiliary equipment and simplify transport.
• Hydraulic Precision Control – Adjustable torque and feed force for smooth drilling in mixed formations.
• Robust Powertrain – Equipped with a high-performance Weichai diesel engine for continuous and stable operation.
• Superior Mobility – 360° rotation and high-leg crawler structure make loading, unloading, and relocation effortless.
• Economical Operation – Reduced fuel use, faster drilling speed, and minimal downtime lower total project costs.

Application

• DTH & Rock Drilling – Efficient performance in medium to hard rock layers.
• Anchor Drilling – Foundation pits, tunnel reinforcement, and slope anchoring.
• Auger Drilling – Soil stabilization and foundation construction.
• Exploration & Sampling – Suitable for geological and mineral surveys.
• Blasting & Mining – Drilling blast holes for construction and mining.
• Geothermal & Water Wells – Efficient for heat pump systems and irrigation wells.

FAQ

Q1: What drilling methods can the JCM200 perform?
A1: The rig supports DTH, auger, anchor, exploration, and blasting hole drilling operations.

Q2: Is the JCM200 suitable for hard rock conditions?
A2: Yes. Its high torque and hydraulic DTH system allow strong penetration in dense rock formations.

Q3: What is the power source of this machine?
A3: It runs on a reliable 247 kW Weichai WP10-330-247 diesel engine.

Q4: How does the automatic rod changer improve work efficiency?
A4: It reduces manual handling, improves safety, and cuts auxiliary time during rod replacement.

Q5: Can optional devices be added to the JCM200?
A5: Yes, optional configurations such as a foam pump or onboard generator can be installed upon request.

Keywords

JCM200 crawler drilling rig
hydraulic multifunction drilling machine
automatic rod changing rig
DTH drilling equipment
rock anchor drilling rig
geotechnical drilling solution
Weichai powered drill rig
JCDRILL multifunctional rig
