Class 220 Super Thin Rectangular Copper Wire 0.8mmx0.35mm For Windings

    Buy cheap Class 220 Super Thin Rectangular Copper Wire  0.8mmx0.35mm For Windings from wholesalers

    Buy cheap Class 220 Super Thin Rectangular Copper Wire  0.8mmx0.35mm For Windings from wholesalers
    • Buy cheap Class 220 Super Thin Rectangular Copper Wire  0.8mmx0.35mm For Windings from wholesalers

    Class 220 Super Thin Rectangular Copper Wire 0.8mmx0.35mm For Windings

    Ask Lasest Price
    Brand Name : RVYUAN
    Model Number : AIW220
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 100kg/week
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    Class 220 Super Thin Rectangular Copper Wire 0.8mmx0.35mm For Windings

    Class 220 Super Thine Rectangular Copper Wire 0.8mmx0.35mm For Windings
    A key feature of our enameled rectangular copper wire is its exceptional electrical conductivity. Made from high-quality copper, this wire ensures efficient power transmission, which is crucial for applications such as transformer windings, electric motors, and inductors. This superior conductivity not only improves the performance of electrical systems but also increases energy efficiency, making it ideal for renewable energy applications.
    Itemconductor dimension

    Insulation

    thickness

    Overall dimension

    Breakdown

    voltage

    Conductor

    resistance

    ThicknessWidthThicknessWidthThicknessWidth
    UnitmmmmmmmmmmmmkvΩ/km 20℃

    SPEC

    Nominal0.3500.8000.0250.025
    Max0.3590.8600.0400.0400.4000.90072.710
    Min0.3410.7400.0100.0100.700
    No. 10.3470.8140.0100.0150.3670.8431.005

    63.154

    No. 21.414
    No. 31.336
    No. 41.558
    No. 51.652
    No. 6
    No. 7
    No. 8
    No. 9
    No. 10
    Avg0.3470.8140.0100.0150.3670.8431.393
    No.of reading1111115
    Min. reading0.3470.8140.0100.0150.3670.8431.005
    Max. reading0.3470.8140.0100.0150.3670.8431.652
    Range0.0000.0000.0000.0000.0000.0000.647

    Custom PEEK wire 1.4mmx2.0mm Enameled Rectangular Copper Wire product photo

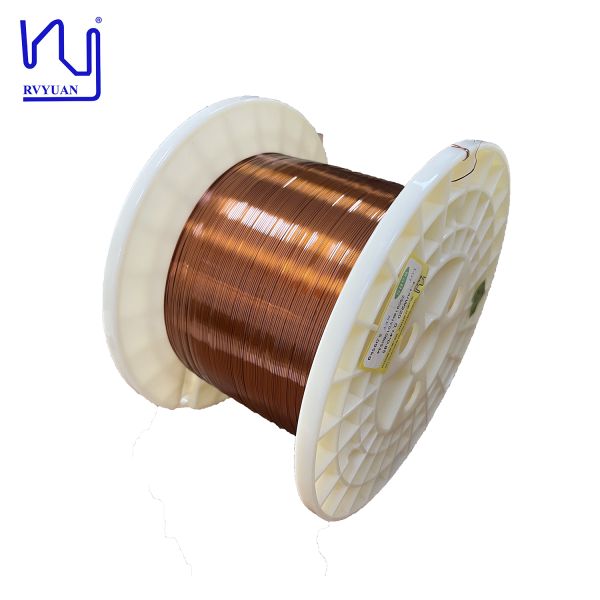

    Quality Class 220 Super Thin Rectangular Copper Wire  0.8mmx0.35mm For Windings for sale
