Product Description:
The Weichai Diesel Generator Set is a reliable and efficient power
solution suitable for a wide range of applications. With a noise
level of ≤105dB(A), this generator set operates quietly, making it
ideal for both indoor and outdoor use.
Equipped with advanced control systems from Smartgen and Deepsea,
the Weichai Diesel Generator Set ensures precise monitoring and
management of power output, enhancing overall performance and
reliability. The sophisticated control systems allow for seamless
integration with various applications, providing users with
flexibility and convenience.
The starting system of the Weichai Diesel Generator Set features a
24V DC Electric Starting Motor, ensuring quick and reliable startup
whenever power is needed. This efficient starting system
contributes to the overall reliability of the generator set, making
it a dependable source of power in critical situations.
With a fuel tank capacity ranging from 5 to 1000 liters, the
Weichai Diesel Generator Set offers extended running times and
reduced maintenance requirements. The ample fuel tank capacity
ensures continuous operation without frequent refueling, making it
a practical and cost-effective power solution for various
industries and settings.
Featuring a power range of 20 to 2000 kW, the Weichai Diesel
Generator Set provides versatile power output options to suit
different needs and applications. Whether used for standby power in
emergencies or continuous power in remote locations, this generator
set delivers consistent and reliable performance to meet diverse
power demands.
Get Quote Now to discover the competitive price of the Weichai
Diesel Generator Set and take advantage of its advanced features
and capabilities. With its efficient design, reliable performance,
and wide range of power options, this generator set offers a
cost-effective solution for businesses, facilities, and projects
requiring dependable power supply.
Technical Parameters:
| Generator set | Model No. | SW100E5 |
| Standby power | 110KVA88KW |
| Rated power | 100KVA/80KW |
| Output voltage | 380-415V/3 phase |
| Rated speed (r/min.) | 1500 |
| Noise level(7m) | 72 dB (silent type) |
| Power factor | COSΦ=0.8(lagging) |
| Phase/wires | 3 phase 4 wires |
| Start mode | Electric |
| Fuel consumption | 22L/h (100% load) 15.7L/h (75% load) |
| Max currency(amps) | 153 (415v) /159 (400v) |
| Protection | Low oil-pressure, High water temperature, Over-speed, Over-current. |
| Engine | Brand | Weichai |
| Model | WP4.1D113E200 |
| Rated speed (r/min.) | 1500 |
| Cylinder layout | 4 in line |
| Fuel | 0# light diesel |
| Compression Ratio | 17.5:1 |
| Engine Power (prime/standby) | 101KW/113KW |
| Aspiration | Turbo charged&Intercooled |
| Governor/Class | Electronic |
| Bore and stroke | 105×118 mm |
| Start mode | DC24V electric start |
| Displacement | 4.1 L |
| Alternator | Brand | Wattek |
| Model | WHI 274C |
| Protection | IP23 |
| Insulation class | H |
| Frequency | 50 Hz |
| Frequency fluctuation | ≤±0.5 % |
| Voltage distortion | ＜4% |
| Output (Cont./standby) | 100KVA/110KVA |
| Rated voltage | 380-415V adjustable |
| Phase | 3 |
| Frequency regulation | ≤±0.5 %(stable) |
| Voltage control | AVR |
| Technical parameters of Control Panel: |
| Brand | Smartgen | Model | HGM 4010N |  |
| Function: | |
• Start or Stop Generator set manually / automatically • Open controller output can be defined as Pre-heat/Idle output • High Coolant temperature protection • Low Oil pressure protection • Over load protection • Generator over/under frequency protection • Generator over/under/unbalance voltage Protection • Over speed protection |
| Note:Indicate this function depend on the set points of the
controller in field. |
| Optional accessories |
| Engine | • Heater • Battery Charger |
| Alternator | • Permanent Magnet Generator(PMG) |
| Control system | • Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling
System |
| Fuel system | • Daily Fuel Tank • Water Separator • Fuel Level Sensor |
| Others | • Rainproof Type • Soundproof Type • Trailer Type • Extra spare
Parts |
| Standard Accessories | Open type | Silent type |
| Sound-proof & Weather-proof Canopy | N/A | √ |
| Daily base fuel tank. 8 hours capacity | Optiona | √ |
| Single-bearing generator again drops | √ | √ |
| Intelligent LED display control panel | √ | √ |
| Speed governor | √ | √ |
| Electric start and 12v charger | √ | √ |
| Standard air filter, oil filter, fuel filter | √ | √ |
| Cooling water tank | √ | √ |
| High-efficient muffler | √ | √ |
| Circuit breaker | √ | √ |
| Exhaust elbow | √ | √ |
| Storage battery&cable&charger | √ | √ |
| Steel base-frame against vibration | √ | √ |
| Soft pipe for fuel and handle for lube going-out | √ | √ |
| Operation& Maintenance manual. | √ | √ |
| Drawing | Dimension |

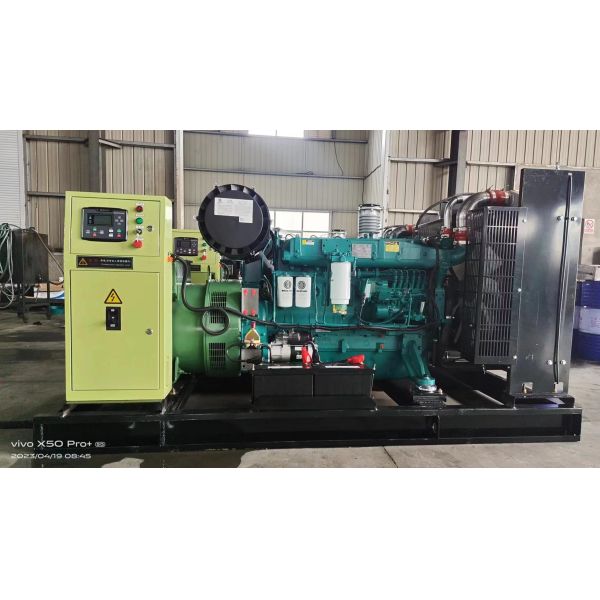

 | Open type: 2000*940*1150 mm 900 kg
|

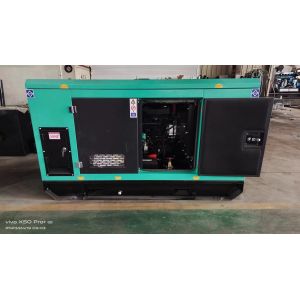

 | Silent type: 2800*1100*1600 mm 1,550 kg
|
Applications:
The STONE POWER Weichai Diesel Generator Set model SW100E5 is a
reliable and efficient power solution originating from CHINA. With
a wide power range of 20-2000kW, this generator set is suitable for
various applications and scenarios.
One of the key attributes of this generator set is its efficient
and stable performance, making it ideal for different sizes of
operations. Whether it is a small business, a large industrial
facility, or an emergency backup power source, the SW100E5 can
deliver consistent power output to meet the requirements.
Due to its versatility and reliability, the STONE POWER Weichai
Diesel Generator Set is a more cost-effective solution compared to
other power sources. Its water-cooled cooling system ensures
optimal performance even in demanding conditions, while keeping the
noise level below 105dB(A) for a quieter operation.
Equipped with a choice of Smartgen or Deepsea control systems,
users can easily monitor and manage the generator set for seamless
operation. Additionally, the warranty of 1000 hours or 12 months
offers peace of mind regarding the product's durability and
longevity.
Whether for standby power in critical facilities, prime power in
remote locations, or continuous power in industrial settings, the
STONE POWER Weichai Diesel Generator Set SW100E5 can be ordered
with a minimum quantity of 1, with pricing to be negotiated. The
delivery time of 30 days ensures timely access to this dependable
power solution.
Support and Services:
Weichai Diesel Generator Set product technical support and services
include:
- Installation guidance and support
- Operation training for users
- Regular maintenance recommendations
- Troubleshooting assistance
- Warranty coverage and claims handling
- Spare parts availability and ordering
Packing and Shipping:
Product Packaging and Shipping:
Our Weichai Diesel Generator Set is carefully packaged to ensure
safe delivery to our customers. Each generator set is securely
enclosed in a durable wooden crate to prevent any damage during
transportation.
For shipping, we partner with trusted and reliable shipping
companies to deliver the generator set to your desired location.
Our team ensures that the product is loaded and shipped efficiently
to reach you in a timely manner.
