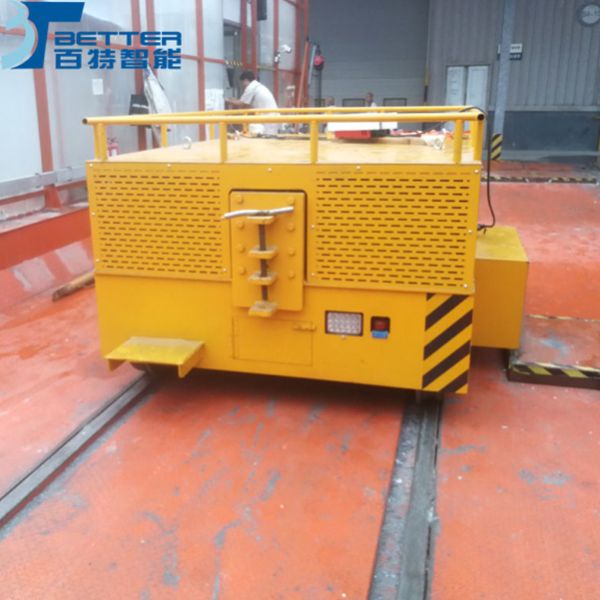

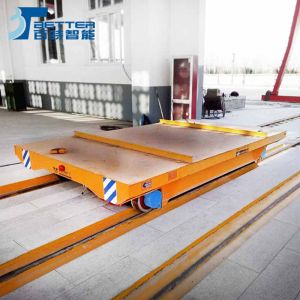

Industrial Electric Transfer Cart for Rails, 1 Ton Capacity
This track car features a robust steel structure and reliable
electric drive components, enabling smooth and precise
transportation of goods, raw materials or parts in workshops,
warehouses and production lines. It operates on standard tracks,
moves stably and is easy to integrate into existing workflows. The
compact design, combined with user-friendly control and optional
safety features such as limit switches and emergency braking, makes
it an ideal choice for medium and small tonnage handling
applications. This flatbed car optimizes internal logistics,
effectively reduces human input, enhances operational efficiency,
and ensures the safety of the working environment.
| Model | BDG-2t | BDG-5t | BDG-10t | BDG-16t | BDG-20t | BDG-25t | BDG-30t | BDG-40t | BDG-50t | BDG-63t | BDG-80t | BDG-100t | BDG-150t |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Height(H) | 450 | 450 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 0.8 | 0.8 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Transformer Power(KVA) | 3 | 3 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | 20 | 30 | 30 |
| Transformer Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Running Distance(m) | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 60 | 50 | 50 | 50 | 50 | 50 |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
How can Transfer Carts be customized?Please tell us:
What load or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per
day:)
What is the travel area you need to cover? (Rail/cement floor,
Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.---- Low noise It causes low noise level.
---- Maximum safety Offers guarantee of maximum safety for operators and for the
material handled. We really care about the safety of everyone
involved in the job.
---- Easy for operation These vehicles are easy to drive, so as soon as you get it you will
be able to use it to transport your loads. We will support you to
make the best out of your heavy load transporter.
---- Easy to implement into manufacturing process Operates on standard floors; Do not require complex or permanent installation
---- Suitable for All Kinds of Weight The steering battery powered trolley is superb for handling both
small and extremely huge loads for its modular fabrication and its
high payloads: up to 300 ton for each trolley.
*For lenght is less than 6m, the width is less than 2.2m. It will
be transported by 20ft container. If the length is longer than 5.9m
and less than 12m, it will be transported by 40ft container. If the
quantity is 2 sets or 3 sets, they can be transported by full
container. If the quantity is 1 set, it can be transported by LCL
Container.
*If the length is less than 12m, the width is beyond 2.2m. It needs
to be transported by flat rack (20 or 40 ft) . If the equipment is
beyond above dimension, and quantity need to consider bulk cargo.
