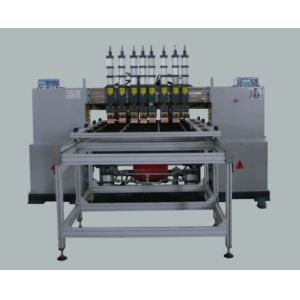

    Manual loading and unloading automatic multi-head gantry wire mesh welding machine

    Ask Lasest Price
    Brand Name : Trintfar
    Certification : CE
    Price : 10000~80000
    Payment Terms : L/C, D/A, D/P, T/T
    Delivery Time : 90~120
    • Product Details
    • Company Profile

    Manual loading and unloading automatic multi-head gantry wire mesh welding machine

    Workflow
    Stainless Steel Oven Shelf Grill Rack Automatic Spot Welding Machine
    Work flow:U plate & Top plate → Front plate & U plate (longer side) → Front plate & U plate (shorter side) → Wave guide & magnetron support → Wave guide assembly & U plate → Back plate & U palte (longe side) → Back plate & U palte (shorter side) → Motor Support & U plate

    Main equipments

    U plate and top plate welding

    Equipment model: 2xDR-20000J-2C

    Stainless Steel Oven Shelf Grill Rack Automatic Spot Welding Machine Stainless Steel Oven Shelf Grill Rack Automatic Spot Welding Machine


    U board and front board short side welding
    Equipment model:2xDR-13000J-2C
    Stainless Steel Oven Shelf Grill Rack Automatic Spot Welding Machine Stainless Steel Oven Shelf Grill Rack Automatic Spot Welding Machine

    U board and front board long side welding
    Equipment model:DR-20000J-1C
    Stainless Steel Oven Shelf Grill Rack Automatic Spot Welding Machine Stainless Steel Oven Shelf Grill Rack Automatic Spot Welding Machine


    Waveguide Box and Magnetron Welding
    Equipment model:DR-30000J-1C
    Stainless Steel Oven Shelf Grill Rack Automatic Spot Welding Machine Stainless Steel Oven Shelf Grill Rack Automatic Spot Welding Machine


    Waveguide Assembly and U Plate Welding
    Equipment model:DR-30000J-1C

    Stainless Steel Oven Shelf Grill Rack Automatic Spot Welding Machine Stainless Steel Oven Shelf Grill Rack Automatic Spot Welding Machine

    welding the long side of the back plate with the U plate
    Equipment model:DR-20000J-1C

    Stainless Steel Oven Shelf Grill Rack Automatic Spot Welding Machine Stainless Steel Oven Shelf Grill Rack Automatic Spot Welding Machine

    short side of the back plate and U plate welding
    Equipment model:DR-13000J-1C

    Stainless Steel Oven Shelf Grill Rack Automatic Spot Welding Machine Stainless Steel Oven Shelf Grill Rack Automatic Spot Welding Machine

    motor support welding
    Equipment model: DR-13000J-1C
    Stainless Steel Oven Shelf Grill Rack Automatic Spot Welding Machine Stainless Steel Oven Shelf Grill Rack Automatic Spot Welding Machine


    Product Details

    Oven Production Line Layout Diagram
    Stainless Steel Oven Shelf Grill Rack Automatic Spot Welding Machine
    Production Results

    Stainless Steel Oven Shelf Grill Rack Automatic Spot Welding Machine


    Basic Structure of DR-20000J Capacitor Energy Storage Spot Welding Machine

    Components:
    Frame, Pressurizing Mechanism, Water Cooling System, Welding Circuit, Capacitor Power Supply, Control System, Body, Welding Cylinder, Electrodes, Cooling Circuit, Monitoring Device, and Safety Mechanism.

    1. Frame:
      • C-frame structure, high-quality steel, and section steel.
      • Precision machining and heat treatment for rigidity and accuracy.
    2. Pressurizing Mechanism:
      • Vertical pressure type with self-lubricating bearings for better performance.
      • Minimizes electrode impact, preventing damage and wear.
    3. Pneumatic System:
      • Includes Japanese "SMC" solenoid valves, Taiwanese air processors, and oil-free cylinders.
      • Gas storage tank stabilizes pressure.
    4. Discharge Transformer & Welding Circuit:
      • Uses Wugang silicon steel sheets, and precision copper casting.
      • Soft copper tape and electrodes in series.
    5. Main Control System:
      • Mitsubishi PLC and HMI.
      • Manual, automatic, and charging modes.
      • Adjustable parameters via touch screen (voltage, pressure time).
    6. Welding Controller:
      • Fast charging/discharging via microprocessor.
      • Compatible with old and new capacitors, it extends capacitor life.
      • Protection modes for fault prevention.
      • Automatic adjustment for capacitor voltage and leakage current.
      • Fault detection for overcharge, discharge, and capacitor errors.
      • Stores up to 5 welding specs, count 9999 welds, real-time voltage detection (error ≤ 1%).
    Technical Services
    Adhere to customer-centricity and provide your company with comprehensive pre- sales and after-sales services such as installation, commissioning, training, and maintenance.

    Pre-sales service: Before signing the contract, the company provides customers with various production process solutions and technical consulting services for equipment.

    Installation and commissioning: According to the contract, our company will safely transport the equipment to the installation site designated by the user within the specified time, and send technical service engineers to install it on site. When the user has the basic installation and commissioning spare parts, the technical service engineer will install and debug the machine for the user to use, ensuring that the installation and commissioning site environment is neat, clean and orderly.

    After-sales Training: The company offers free technical training (min. 5 days) at the buyer's site or the seller's training center. Key topics include:

    -Control software usage
    -Power on/off procedures
    -Panel and software parameter settings
    -Basic machine cleaning and maintenance
    -Handling common hardware failures
    -Operational precautions
    Equipment maintenance

    -One-year warranty after final acceptance;
    -Customer service response time is within 24 hours;
    -Paid repairs are provided after the warranty period.


    Equipment Configuration List
    NoStation NameModelQuantityUnit
    1Motor bracket weldingDR-13000J-1C1Set
    2U board and top board welding2xDR-20000J-2C1Set
    3U board and front board short-side welding2xDR-13000J-2C1Set
    4U board and the long side of the front board are weldedDR-20000J-1C1Set
    5Waveguide box and magnetron weldingDR-30000J-1C1Set
    6Waveguide assembly and U-board weldingDR-30000J-1C1Set
    7The long side of the back plate is welded to the U plateDR-20000J-1C1Set
    8The short side of the back plate is welded to the U plateDR-13000J-1C1Set
