    Xianda Stone Machinery Granite Marble Bridge Saw Full Automatic High Efficiency Head and Table Rotation 360 Degree Stone Bevel Cutting Machine

    Ask Lasest Price
    Brand Name : Xianda Machinery
    Model Number : ZDCM-400
    Certification : CCC, SONCAP, GOST, ISO, CE
    Price : To Be Negotiable
    Payment Terms : L/C,D/P,T/T,Western Union,D/A
    Supply Ability : 1000 Sets/Year
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Xianda Stone Machinery Granite Marble Bridge Saw Full Automatic High Efficiency Head and Table Rotation 360 Degree Stone Bevel Cutting Machine

    Basic Info.

    Model NO.
    ZDCM-400
    Application
    Construction, Stone Industry
    Source Voltage
    380V
    Automation
    Automatic
    Cutting Ability
    High Speed
    Control
    PLC
    Certification
    CCC, SONCAP, GOST, ISO, CE
    Blade Diameter
    Φ300-Φ600
    Max Processing Size
    3200*2000*80mm
    Dimension of Worktable
    3200*2000mm
    Workable Tilting Degree
    0-85°
    Worktable Rotation Degree(Optional)
    0-90° / 0-360°
    Main Motor
    15kw
    Water Consumption
    4m3/H
    Outline Dimension
    5000*3100*2600mm
    Transport Package
    Load in a 40 Feet Container
    Specification
    5000*3100*2600mm
    Trademark
    Xianda
    Origin
    Jinjiang, Fujian, China
    HS Code
    84641090
    Production Capacity
    1000 Sets/Year

    Product Description


    Xianda Stone Machinery Granite Marble Bridge Saw Full Automatic High Efficiency Head and Table Rotation 360 Degree Stone Bevel Cutting Machine







    Product Description

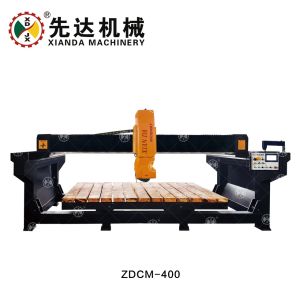

    ZDCM-400
    Monoblock bridge cutting machine(special for Marble and sintered stone)
    This machine adopts Microcomputer system, easy to operate; Integrated structure, easy to install;
    The frame of the machine boday is proceesed and formed by CNC gantry milling center at one time, using high-precision linear guide sliders, grinding-grade ball screws, and high -end servo systems. It greatly improves the stablilty, processing accuracy and production efficiency of the equipment, and reduces the failure rate. it is suitable for all kinds of large-scale plate processing with high precision requirements and high value.


    Technical Parameter
    Parameter
    Unit
    ZDCM-400
    Blade diameter
    mm
    φ300-400
    Max processing size
    mm
    3200*2000*80
    Dimension of worktable
    mm
    3200*2000
    Worktable tilting degree
    °
    0-85°
    Worktable rotation degree
    °
    0-90°,0-360°
    Main motor
    kw
    15
    Water consumption
    m³/h
    3
    Outline dimension
    mm
    5000*3100*2600
    Gross weight
    kg
    5500

    Xianda Machinery
    Xianda Stone Machinery Granite Marble Bridge Saw Full Automatic High Efficiency Head and Table Rotation 360 Degree Stone Bevel Cutting Machine
    Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
    With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.


    Exhibition
    Xianda Stone Machinery Granite Marble Bridge Saw Full Automatic High Efficiency Head and Table Rotation 360 Degree Stone Bevel Cutting Machine
    Our Service

    * Training how to instal the machine, training how to use the machine.
    * Engineers available to service machinery overseas.
    * After-sales service 24 hour on line.

    If you have any problem,just conact our sales department,customer service department,etc at any time.
