Fully Automatic Pallet Filling Machine with Visual Positioning Stainless Steel S304 Construction and High Temperature Endurance

Product Description

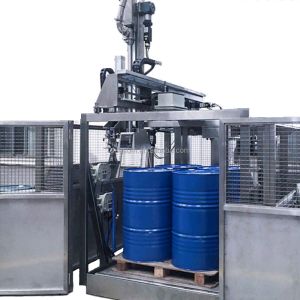

200L pallet type fully automatic filling machine

1. Introduction

GZ200*4-1BS pallet type below-bunghole fully automatic filling machine is equipped with 1 filling station each machine, which could perform visual bunghole positioning, automatically cap releasing, automatically capping, filling automatically and manually remove the filled heavy drum. The machine adopts S304 hard connection pipe and valve system, featuring high integrality, heat preservation and high safety, which is appropriate for filling chemical product in various type of drums, ranging from 40L to 1000L.

2. Filling nozzle

The filling nozzle uses internal-type metal-sealed bottom valve and compression-type graphite packing shaft seal, which ensures zero dripping and high temperature endurance. Besides, the filling nozzle employs casing insulation that could inlet steam or hot oil for heat tracing.

3. Interlock security system

In addition, the filling machine has a safety interlock system. When the drum is not in the right position or the filling nozzle does not go through the bunghole, the filling valve would not open or start filling; when the filling telescopic pipe touches the drum surface, it would retract automatically.

4. Weighing system

TRANSCELL stainless steel nitrogen purging sensors are embedded with the weighing platform on the filling stations. UNIPLUS instruments are installed with the control cabinets. The weighing platforms keep low with only 10cm high, which also endure high temperature.

5. Roller conveyors (not applicable)

There are 4 parts of roller conveyors used in the system: empty drum infeed, weighing, filled drum outfeed, and filled drum wait-shovel. Apart from the filled drum wait-shovel roller conveyor, all the other roller conveyors used are power roller conveyors equipped with ex-proof motor and reduction gears. All the rollers are kept within 10cm high, improving easy and safe operation.
Peripheral Equipment

1. Palletizing system (optional)

The filling line is assessed with a palletizing system, which facilitates the completed drums discharge. After arriving the palletizing position, the completed drums are snatched up by the pallet gripper two at a time and located on the pallet. When the two subsequent competed drums arrive at the palletizing position, the pallet gripper would go back and repeat the transfer action. The pallet with completed drums would move to the wait-shovel roller way waiting for forklift, in the meanwhile the pallet magazine would release an empty pallet. The pallitizer is operated repeatedly.

2. Capping and Sealing machine

Not applicable in this case.

3. Wrapping and Binding machine

Not applicable in this case.

Successful Case

China Guangdong Province Qingyuan Company

In 2018, DAESUM manufactured 3 automatic visual positioning filling lines for Guangdong Qingyuan Company, which helps Qingyuan Chemicals create billions of value every year. Till now, all the 3 lines are completely installed and working in good condition without any machinery and safety matters.
