    Sinolift CQDX15 CQDX20 Pedestrian Scissors Electric Reach Stacker

    Ask Lasest Price
    Brand Name : SINOLIFT
    Model Number : CQDX15 CQDX20
    Certification : CE, ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 55 units
    Delivery Time : 15 DAYS
    • Product Details
    • Company Profile

    Sinolift CQDX15 CQDX20 Pedestrian Scissors Electric Reach Stacker

    Product Name

    Sinolift CQDX15 CQDX20 Pedestrian Scissors Electric Reach Stacker

    The Sinolift CQDX15 & CQDX20 Electric Scissors Reach Stacker is engineered for superior performance in confined spaces. Featuring a steering system and shearing forward function for unparalleled maneuverability, its robust design ensures durable performance where others can't reach. Ideal for warehouse, dock, and retail applications, it combines powerful lifting with intuitive electric operation for efficient, safe material handling.


    Key Features

    Sinolift CQDX15 & CQDX20: The Narrow-Aisle Specialist

    1. Unmatched Maneuverability: Featuring a precise steering system and a unique scissor-forward reach function, this stacker delivers unparalleled agility for operating in the tightest aisles and confined spaces where other equipment cannot fit.

    • Robust & Stable Performance: Engineered with a heavy-duty structure, including a reinforced C+H steel mast, triple-sealed cylinders, and reinforced chains, it ensures powerful, smooth, and safe lifting of loads up to 2 tons without deformation.
    • Advanced Electric Control: The Curtis AC drive system and high-power motors provide responsive, efficient, and longer-lasting power for both travel and lifting, enabling easy ramp climbing and progressive speed control.

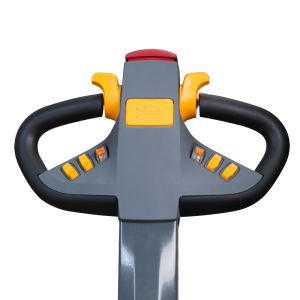

    • Operator-Focused Design: An ergonomic smart handle with a proportional control valve allows for precise lifting via thumb pressure. Key functions like side-shift, tilt, and horn are all integrated for effortless, one-person operation.
    • Durable & Low-Maintenance: Built with premium components like leak-resistant integrated cylinders, maintenance-free AC motors, and long-lasting polyurethane wheels, it guarantees high uptime and reduced operating costs.
    • Enhanced Safety Features: Standard safety elements include an emergency reverse button, a high-strength protective mesh, a warning beacon, and a hydraulic system designed to prevent mast drops in case of pressure loss.

    Application Scenarios:

    Ideal for maximizing space and efficiency in various material handling environments, including warehouse storage, retail stocking, dock handling, and express cargo logistics.


    Product Specifications

    Identification1.1ManufacturerSINOLIFT
    1.2ModelCQDX15CQDX20
    1.3Power TypeElectric
    1.4Type of OperationWalkie
    1.5Steering ModeElectric Power Steering
    1.6Load Capacity/Rated LoadQkg15002000
    1.7Load Center DistanceCmm500500
    1.8Load Distance, the center of drive axle to forkx160160
    1.9Wheelbaseymm14151415
    Weight2.1Total Weight (with Battery)kg20652600
    2.2Axle Load (Laden): Drive side/Load-bearing Side/1
    2.3Axle Load (Unladen): Drive side/Load-bearing sidekg//
    Tyre3.1Tyre TypePolyurethanePolyurethane
    3.2Tyre Size (Front)mmØ150x100Ø150x100
    3.3Tyre Size (Balance Wheel)//
    3.4Tyre Size (Driving Wheel)mmφ248x75φ250x70
    3.5Wheels Quantity, Front/Rear (x=Driving Wheels)2/1x2/1x
    Dimension4.1Overall LengthL1mm22002140
    4.2Overall Length (without Forks)L4mm16551670
    4.3Chassis Length to Face of ForksL2mm11301130
    4.4Lift Heighth3mm45004500
    4.5Height with Mast Loweredh1mm20902100
    4.6Height with Mast Extendedh4mm56955705
    4.7Free Lift Heighth5mm15301520
    4.8Overall Width (Chassis/Straddle Leg)b1/b2mm820/1500820/1500
    4.9Fork Dimensionl/e/smm1070×100×351070×100×35
    4.10Fork Spread Widthb5mm220-815220-815
    4.11Fork Mounting Class2A2A
    4.12Fork Carriage Spread Widthb3mm835835
    4.13Fork Carriage Tilt (forward/backward)α/β°2/52/5
    4.14Fork Carriage Heighth6mm11601160
    4.15Inner Width of Straddle Legb4mm12201200
    4.16Reach DistanceL3mm570590
    4.17Height of Fork Carriageh6mm11601160
    4.18Ground Clearance at the Center of Wheelbase (Min.)m1mm5456
    4.19Turning Radius (Pedal Retracted/Expanded)Wamm16101460
    4.20Min. Aisle Width (Pallet size 1000*1200)Astmm26252556
    4.21Min. Aisle Width (Pallet size 800*1200)Astmm26652615
    Performance5.1Traveling Speed (Laden/Unladen)km/h3.9/43.5/4
    5.2Lifting Speed (Laden/Unladen)mm/s150/200100/200
    5.3Lowering Speed (Laden/Unladen)mm/s300/300200/100
    Pantograph Reaching Speed (Laden/Unladen)mm/s70/6070/60
    5.4Max. Gradient Performance S2 5min (Laden/Unladen)%6/156/10
    5.5Service Brake TypeElectromagneticElectromagnetic
    5.6Parking Brake TypeElectromagneticElectromagnetic
    Power Unit6.1Drive Motor Rating (AC) S2-60minkw1.52.2
    6.2Lift Motor Rating (DC) S3 15%kw4.54.5
    6.3Battery Voltage/Capacity LiFEPO4V/Ah24/20024/200
    6.4Battery Weightkg6868
    Others7.1Controller BrandCURTISCURTIS
    7.2Controller ModelAC F4-AAC F4-A
    7.3Sound Level at Driver's Ear According to EN12053dB7070
