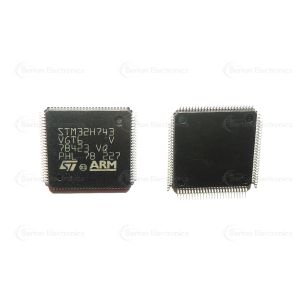

STM32H743VGT6 32-bit Microcontroller with High-Speed Processing Core, Large On-Chip Memory, and Advanced Clock Management

The STM32H743VGT6 is a high-performance 32-bit microcontroller (MCU) from STMicroelectronics’ STM32H7 series, built on the Arm® Cortex®-M7 core.

It delivers exceptional processing power and rich peripherals for complex embedded applications.

• High-Speed Processing Core: Features an Arm® Cortex®-M7 core running at up to 480 MHz, with a Floating-Point Unit (FPU) and Digital Signal Processor (DSP) instructions. This enables fast execution of complex algorithms (e.g., real-time control, signal processing).
• Large On-Chip Memory: Integrates 2 MB of Flash memory (for program storage) and 1 MB of RAM (including 512 KB of TCM for critical, low-latency data). It also supports external memory expansion (e.g., SDRAM, QSPI Flash) via dedicated interfaces.
• Advanced Clock Management: Includes a Phase-Locked Loop (PLL) and low-power oscillators, supporting flexible clock configurations to balance performance and power consumption.
• Multi-Level Power Modes: Offers multiple low-power modes (e.g., Stop, Standby) to minimize energy use in battery-powered or energy-sensitive devices, with fast wake-up times (down to microseconds).

• High-Speed Interfaces: Equipped with dual USB ports (USB 2.0 OTG Full-Speed/High-Speed), Gigabit Ethernet (with IEEE 1588 PTP for time synchronization), and multiple SPI (up to 108 MHz) and I2C interfaces for fast peripheral communication.
• Display & Graphics Support: Features a Chrom-ART Accelerator™ for 2D graphics rendering and a TFT-LCD controller (with up to 800x600 resolution support), enabling seamless integration of graphical user interfaces (GUIs).
• Analog Peripherals: Includes a 16-bit Analog-to-Digital Converter (ADC) with up to 24 channels (1 MSPS sampling rate), dual 12-bit Digital-to-Analog Converters (DACs), and multiple comparators for precision analog signal processing.
• Motor Control Capabilities: Provides dedicated timers (e.g., TIM1, TIM8) with advanced PWM modes, supporting sensorless or sensor-based motor control (e.g., for BLDC, PMSM motors) in industrial or automotive applications.
• Security Features: Integrates hardware encryption (AES, 3DES), a Secure Hash Algorithm (SHA), and a True Random Number Generator (TRNG) to protect sensitive data and prevent unauthorized access.

• Industrial Automation: Used in programmable logic controllers (PLCs), industrial robots, and human-machine interfaces (HMIs). Its high processing speed and robust peripherals support real-time control and complex motion algorithms.
• Consumer Electronics: Applied in smart home hubs, high-end audio equipment, and portable gaming devices. The graphics accelerator and large memory enable rich GUIs and multimedia processing.
• Automotive Electronics: Suitable for in-vehicle infotainment systems, advanced driver-assistance systems (ADAS) sensors, and telematics units. It meets automotive-grade reliability standards and supports harsh operating conditions.
• Medical Devices: Used in portable diagnostic equipment (e.g., blood glucose monitors), patient monitors, and imaging devices. Its precision analog peripherals and low-power modes ensure accurate data collection and long battery life.
• IoT & Edge Computing: Deployed in high-performance IoT gateways and edge nodes. It handles local data processing (e.g., sensor data analytics) and communicates with cloud platforms via Ethernet or USB.
