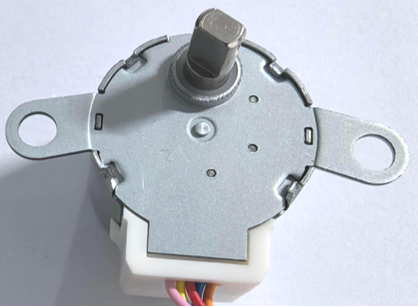

24BYJ48 Stepper Motor 24mm Diameter with Precision Control and Versatile Applications for Industrial Use

    Buy cheap 24BYJ48 Stepper Motor 24mm Diameter with Precision Control and Versatile Applications for Industrial Use from wholesalers

    Buy cheap 24BYJ48 Stepper Motor 24mm Diameter with Precision Control and Versatile Applications for Industrial Use from wholesalers
    • Buy cheap 24BYJ48 Stepper Motor 24mm Diameter with Precision Control and Versatile Applications for Industrial Use from wholesalers
    • Buy cheap 24BYJ48 Stepper Motor 24mm Diameter with Precision Control and Versatile Applications for Industrial Use from wholesalers
    • Buy cheap 24BYJ48 Stepper Motor 24mm Diameter with Precision Control and Versatile Applications for Industrial Use from wholesalers
    • Buy cheap 24BYJ48 Stepper Motor 24mm Diameter with Precision Control and Versatile Applications for Industrial Use from wholesalers
    • Buy cheap 24BYJ48 Stepper Motor 24mm Diameter with Precision Control and Versatile Applications for Industrial Use from wholesalers
    • Buy cheap 24BYJ48 Stepper Motor 24mm Diameter with Precision Control and Versatile Applications for Industrial Use from wholesalers

    24BYJ48 Stepper Motor 24mm Diameter with Precision Control and Versatile Applications for Industrial Use

    Ask Lasest Price
    Brand Name : XM-Motor
    Model Number : 24BYJ48
    Certification : ISO9001 ROHS
    Price : 1~6 USD/PC
    Payment Terms : T/T
    Supply Ability : 200,000 PCS/month
    Delivery Time : 20 to 30 days after receiving deposit
    • Product Details
    • Company Profile

    24BYJ48 Stepper Motor 24mm Diameter with Precision Control and Versatile Applications for Industrial Use

    24BYJ48 Stepper Motor With Copper Coil High Torsion DC 5V


    Product Introduction:

    • Model No: 24BYJ48
    • With same number of poles as the stator, the rotor is composed of permanent magnet material.
    • Features excellent dynamic performance and high output torque

    24BYJ48 Stepper Motor Datasheets:

    ModelVoltage(V)Resistance(Ω)Step Angle (1-2P) /(2-2P)Frequency(PPS)Pull-in Torque(mN.m)Self-locating Torque(mN.m)No-loading pull-in frequency(PPS)No-loading pull-out frequency(PPS)
    24BYJ48520(5.625°/64) /(11.25°/64)100≥78.4≥34.3≥500≥900
    1250(5.625°/64) /(11.25°/64)500≥150≥49≥500≥900
    1270(5.625°/64) /(11.25°/64)500≥13≥49≥500≥900
    12200(5.625°/64) /(11.25°/64)400≥78.4≥34.3≥500≥900
    1270(5.625°/16) /(11.25°/16)400≥19.6≥19.6≥500≥900
    1270(5.625°/32) /(11.25°/32)400≥49≥19.6≥500≥900
    1250(5.625°/37) /(11.25°/37)500≥100≥34.3≥500≥900
    24200(5.625°/64) /(11.25°/64)400≥150≥34.3≥500≥900
    24300(5.625°/64) /(11.25°/64)400≥80≥34.3≥500≥900

    Friendly Reminder:

    The above 24BYJ48 series parameters are standard products, our company can do product design, development and production according to your special requirements. for more information, please email to bianwenhui@xingmaimotor.com


    24BYJ48 DIMENSIONS: mm

    24BYJ48 Stepper Motor Torque Curve:


    24BYJ48 Series Applications:


    Home appliances: Air conditioners, Electric fans, Projectors,Cameras, Monitors etc.


    Workshop :


    Custom BYJ Stepper Motors Tailored to Your Specific Needs


    • Logo printing :as your need.
    • Specific wiring or connector solutions: embedded wires or bare wires for select.customize the connector type according to your specifications, ensuring a perfect fit for your application.
    • Holes Customization: Can specify the direction, size, and quantity of the installation holes to match your design.
    • Parameters customization: Voltage,Resistance, Inductance, Number of Phases, Step Angle, Torque.
    • Gear customization: Dupont plastic gears, powder metallurgy gears or POM clear powder gears for select.

    24BYJ48 Stepper Motor With Copper Coil High Torsion DC 5V
