Description of Candied Fruit / Preserved Fruit / Confect Belt Dryer
Raw materials are uniformly fed on the mesh-belt / plate belt by
distributor. The mesh-belt / plate belt is drawn and moved inside
the dryer by a driving device. The dryer is consisted of several
independent drying sections. Hot air circulated separately and
independently in each section. Part of damp air will be exhausted
by exhausting fan. Hot air penetrates the belt from top to bottom
or from bottom to top, and this will complete the heat and mass
transfer process. Moving speed of belt is adjustable. The top and
bottom circulation units can be freely equipped according to
customer's requirement.
Features of Candied Fruit / Preserved Fruit / Confect Belt Dryer
◆◆ Different heating and circulation method is available for
choice.
◆◆ Length , width and layer quantity of belt is designed based on
production requirement.
◆◆ The machine pre-dehydration process could remove massive
moisture on leaf surface, thus reduced the drying strength, and
reduced the energy consumption.
◆◆ Special hot air drying system, increase material penetrability
and drying rate.
◆◆ The adjustment of belt speed and the different section
temperature control, it guaranteed the drying time and material
quality and color.
◆◆ Strong magnetism iron removal device is available for choice, it
could remove metal impurities effectively.
Application of Candied Fruit / Preserved Fruit / Confect Belt Dryer
◆DWF belt dryer is continuous-production drying equipment. The
dryer being widely used for drying the piece, strip and particle
shape materials in good ventilation. The dryer is suitable for
de-watering fruit & vegetable which the moisture content is high
and high drying temperature is not allowed. Drying speed of belt
dryer is fast, evaporation strength is high and the product quality
is good.
◆DWF belt dryer is widely used and support for drying various kind
of material such as pigment, fiber, fruit & vegetable, briquette
etc.
Technical Parameters of Candied Fruit / Preserved Fruit / Confect
Belt Dryer

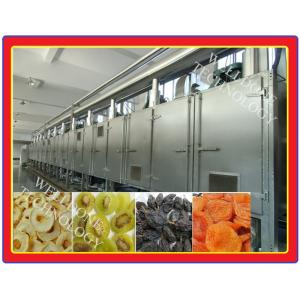

Picture of Belt Dryer in Working
