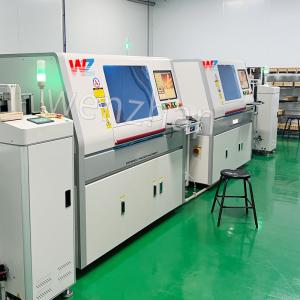

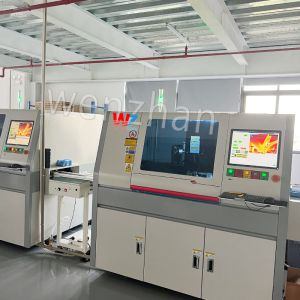

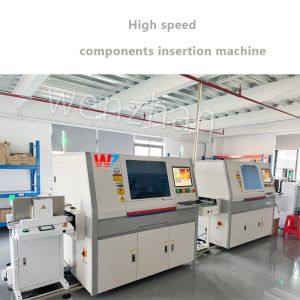

SMT Placement Machine High speed THT Axial PCB Insertion Machine
DIP components insertion machine
| Model | L3010 | L3020 | Z3010 | Z3020 |
| Actual Speed | 18000CPH | 28000CPH |
| working way | off Line | On Line |
| Feeders Position | 10 | 20 | 10 | 20 |
| Accuracy | ±0.05mm |
| Plug-in Angle | 0-360° |
| Lead Spacing | 2.5mm/5.0mm/7.5mm/10mm |
| Transport Speed | N/A | Max 1200mm/s |
| Component Diameter | Max 10mm |
| Compomt Height | Max 20mm |
| PCB Size | 50*50-430*360mm |
| Cutting Lead Length | 1.2-2.2mm |
| Cutting Lead Angle | 5-35* |
| Air Pressure | 4.5~6Kg/cm |
| Power Supply | AC:220+10%,50/60HZ,1.8KW |
| Dimension(mm) | L1700*W1500*H1000 |
| Weight | Approx:2100kg |
The THT Axial PCB Insertion Machine is a specialized device used
for automating the insertion of through-hole axial components into
printed circuit boards (PCBs). This machine significantly enhances
productivity and precision in the electronics manufacturing
process, making it an essential tool for assembly lines.
Functionality:
1. Automated Insertion: The machine automates the insertion of
axial components, reducing manual labor and increasing the speed of
assembly. This automation minimizes errors and ensures consistent
quality in the final product.
2. High Precision: Designed for accuracy, the THT Axial PCB
Insertion Machine ensures that components are inserted at the
correct depth and orientation, which is crucial for reliable
electrical connections.
3. User-Friendly Interface: The machine features an intuitive
control panel that allows operators to easily set parameters,
monitor the insertion process, and troubleshoot any issues that may
arise.
4. Versatile Component Handling: Capable of handling a variety of
axial components, the machine is adaptable to different production
requirements, allowing manufacturers to switch between various
component types with ease.
5. Durable Construction: Built with robust materials, the machine
is designed to withstand the rigors of a manufacturing environment,
ensuring long-term reliability and performance.
Usage Instructions:
1. Setup: Position the machine in a suitable location on the
assembly line and connect it to the necessary power and data
systems.
2. Load Components: Place the axial components into the designated
feeder or hopper, ensuring they are properly aligned for insertion.
3. Configure Settings: Use the control panel to input the desired
parameters, including insertion depth, speed, and component
specifications.
4. Start Insertion: Initiate the insertion process. The machine
will automatically pick and insert the components into the PCB
according to the programmed settings.
5. Monitor Operation: Continuously observe the insertion process to
ensure that components are being placed correctly. Address any
issues promptly.
Application Areas:
The THT Axial PCB Insertion Machine is commonly used in:
1. Electronics Manufacturing: For assembling consumer electronics,
automotive electronics, and industrial devices.
2. Medical Device Production: In the assembly of medical equipment
where precise component placement is critical.
3. Telecommunications: For manufacturing communication devices that
require reliable component insertion.
The THT Axial PCB Insertion Machine is a vital tool for enhancing
efficiency and accuracy in the assembly of through-hole components,
contributing to improved production quality and operational
effectiveness.
