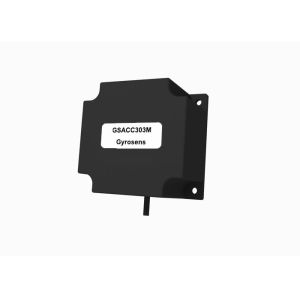

    GSACC303M MEMS Accelerometer with ±10 g Range ≤ 0.01 g Bias and ≤ 0.2% Fs Nonlinear for Precision Measurement

    Ask Lasest Price
    Brand Name : Gyrosens
    Model Number : GSACC303M
    Certification : CE
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability : 1000 Piece/Pieces per Week negotiable
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    GSACC303M MEMS Accelerometer with ±10 g Range ≤ 0.01 g Bias and ≤ 0.2% Fs Nonlinear for Precision Measurement

    Features:

    l Digital RS422 output

    l Wide measuring range,

    l Nonlinear correction and Cross coupling correction

    l Whole temperature range compensation

    l impact resistance, vibration performance

    l High resolution and stability


    Application:

    l Aircraft Stability control

    l inertial navigation system


    Technical Specifications:

    Type

    GSACC303M

    Electric character

    Input voltage

    10~30 VDC

    Input current

    ≤50 mA

    Output Mode

    RS 422

    Baud Rate

    115200 bps

    Output Data Rate

    200 Hz

    Output Data format

    16-bit twos complement

    Performance index

    Axial direction

    X

    Y

    Z

    Range

    ±10 g

    Bandwidth

    ≥60 Hz

    Resolution (°/s)

    0.001 g

    Nonlinear (%FS)

    ≤ 0.2% Fs

    Bias

    ≤ 0.01 g

    Bias temperature drift

    ≤ 0.01 g

    Start-up time (ms)

    ≤1s

    Environmental characteristics

    Temperature (°C)

    -40~+70

    Storage Temperature

    -40~+125

    Resistant to shock

    2000g

    Physical Characteristics

    Weight (g)

    150 g

    Dimension

    55×55×35mm


    Dimensions:

    Quality GSACC303M MEMS Accelerometer with ±10 g Range ≤ 0.01 g Bias and ≤ 0.2% Fs Nonlinear for Precision Measurement for sale
