    WSP-Q40GLR4L 40GBASE-LR4 QSFP transceiver module for SMF, duplex LC connector, up to 2km

    Ask Lasest Price
    Brand Name : Cisco
    Model Number : WSP-Q40GLR4L
    Certification : CE
    Price : $200-$235
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 per week
    Delivery Time : 1-2days
    • Product Details
    • Company Profile

    WSP-Q40GLR4L 40GBASE-LR4 QSFP transceiver module for SMF, duplex LC connector, up to 2km

    WSP-Q40GLR4L Overview

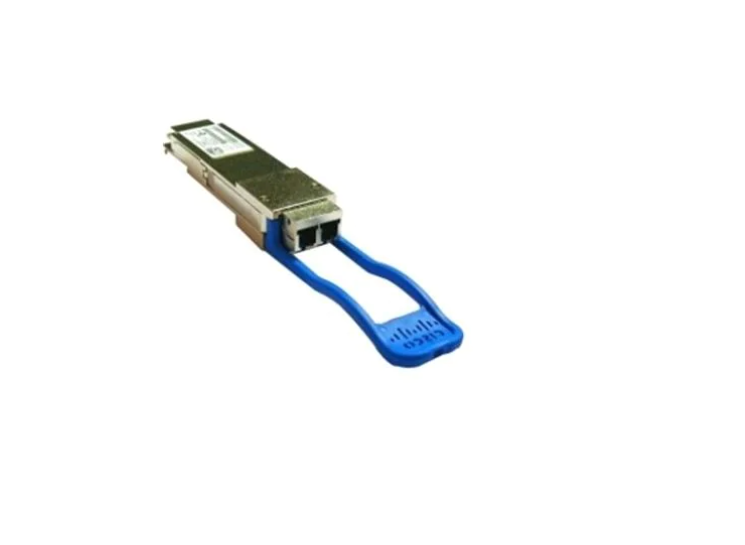

    The Cisco WSP-Q40GLR4L is a high-performance 40GBASE-LR4 QSFP transceiver module designed for single-mode fiber (SMF) applications. Featuring a duplex LC connector, it supports data transmission over distances of up to 2 kilometers. This transceiver is ideal for high-speed network infrastructures that require reliable and efficient connectivity solutions.

    Quick Spec

    BrandCisco
    ModelWSP-Q40GLR4L
    ConnectorDuplex LC
    Maximum Distance2km
    Form FactorQSFP+

    Product Features

    • ● 40GBASE-LR4 standard compliance for robust performance
    • ● Supports single-mode fiber (SMF) with a duplex LC connector
    • ● Transmission reach of up to 2 kilometers
    • ● High-density QSFP+ form factor
    • ● Low power consumption for energy-efficient networking

    Product Applications

    • ● Data Center Interconnects
    • ● Enterprise Core Networks
    • ● High-Performance Computing (HPC) Clusters

    Supported Options

    AccessoryModel
    QSFP+ to 4xSFP+ Breakout CableQSA-Module
    QSFP+ DAC CablesCisco QSFP-H40G-CU1M
    QSFP+ Fiber Optic CablesCisco QSFP-4X10G-LR

    Compare to Similar Items

    ModelDifferences
    Cisco QSFP-40GE-LR4Supports longer distances up to 10km
    Cisco QSFP-40G-SR-BDUses BiDi technology for multimode fiber
    Cisco QSFP-40G-SR4For short range up to 150m on OM3 MMF



    WSP-Q40GLR4L Specification

    WSP-Q40GLR4L Specifications

    Wavelength (nm)1310
    Cable typeSMF
    Core size (Microns)G.652
    Modal bandwidth (MHz km)-
    Cable distance2km
    Power consumption (W)3.5
    Pull tab colorYellow
    Type40GBASE-LR4-Lite, 1310 nm, SMF
    Transmit power (dBm)Maximum: 2.3, per lane
    Minimum: -10, per lane
    Receive power (dBm)Maximum: 2.3, per lane
    Minimum: -13.7, per lane
    Transmit and receive wavelength (nm)Four lanes: 1271, 1291, 1311, 1331
    Environmental conditions

    Operating temperature range:

    ● Commercial temperature range: 0 to 70°C (32 to 158°F). Exceptions are

    ◦ QSFP BiDi (QSFP-40G-SR-BD): +10 to 70°C (50 to 158°F)

    ◦ QSFP BiDi Monitor (QSFP-40G-BD-RX): +10 to 70°C (50 to 158°F)

    ◦ QSFP LR4 Lite (WSP-Q40GLR4L): +10 to 60°C (50 to 140°F)

    ● Storage temperature range: -40 to 85°C (-40 to 185°F)
