GNEE Steel specializing in the production of steel grating , steel grate and frame , trench grate , kerb grate ,storm pits cover , access cover grate , manhole covers.side entry grate , steel stair , steel ball stanchion , steel railing , aluminium grating and other light steel structure products The company has a complete computer-aided design system that can provide users with perfect steel grating layout design. The processing technology is superb and the product quality is excellent.

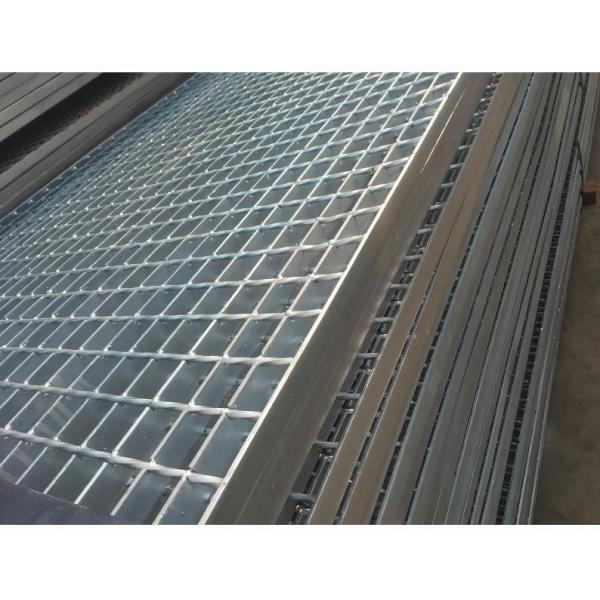

stair treads steel grating is made by bearing bar and cross bar
according to the flat-steel weft arrangement, in high-pressure
spacing on resistance welder welded by cutting, incision, opening,
overlock process such as processing and into customer.
requirements finished products. It's usually used in industrial
construction projects. We have 4 types for choose, there is welded
fixing stair treads, clip fixing galvanized stair treads, checker
plate stair treads.
| Name | Stainless Steel Grating |
| Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5,
50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40,
41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| Material Grade | ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc |
| Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| Standard | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan :JIS |



|
