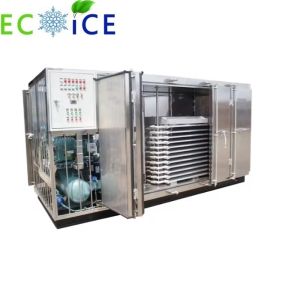

Automatic Stacking and Loading System for Processed Meat and Poultry Products Contact Plate Freezer

Contact Plate Freezer

Hydraulic contact freezer is composed of Plate evaporator, Electrol Cabinet, Hydraulic Pressure device etc.

The Aluminum alloy evaporator is driven by hoist cylinder to contact with frozen foods directly and keep certain pressure. The closed touch, with frozen food forms advantages of high frozen speed, high efficiency energy-saving,

sanitation and compact.

The unit is running under normal temperature to ensure long working life. Adopt contact-type heat conducting, no air flow, which is benefit to decrease foods weight loss.

♣Contact Plate Freezer Main feature:
1, Refrigeration system is built to a compartment beneath the freezing cabinet. It's ideal for small capacity
freezing.
2, Air cooling or water cooling compressors are optional.
3, Doors opened on the front and rear enable access. Easy installed and moved
4, Uniform blocks and even pressure between aluminum plates.
5, Adopt high efficient compressor, well-insulated panels and hygeian extrusion plates.
♣ Contact Plate Freezer Main parameters
1, Digital temperature display(PLC/touch screen control panel)
2, Hydraulic system to lift and press the freezing plates
3, plates are corrosion resistant, polyurethane foam insulation
4, stainless steel insulated boards and doors.
5, cabinet is made up of heavy-duty structural frame, polyurethane insulation and stainless steel sheet
cladding. Leak proof and folding doors at the back.
6, Frozen time:2-4hr/batch7, Freezing temp.:-28C(+/-2)

ShanDong EcoIce Refrigeration Co., Ltd is specialized in manufacturing flake ice machine, heat exchanger,quick freezer , seafood process machines and water chiller in China. With a professional refrigeration and air conditioning system R&D team, we can supply customized OEM & ODM products. For any new project, we could prepare samples for quality check on client request. Now our factory has been awarded ISO9001: 2000, ISO14000, RoHS and UL certificate. With advanced equipment, strong technical team, best management system and 20+ years international business experience, we are cooperating many clients from Europe, North America, South America, Middle East, Africa and South of Asia... We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual development.

Model	Freezing Temp	Size(L*W*H) mm	Weight(kg)	Plate Layers
ECO 500	-35	3000*1500*2000	2800	10
ECO 750	-35	3250*1500*2250	3400	10
ECO 1000	-35	3450*1750*2250	4000	10
ECO 1500	-35	3560*1750*2450	4600	10
