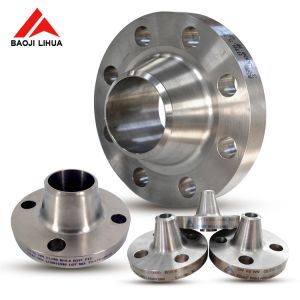

ASME B16.5 forged gr2 titanium WN RF flange weld neck flange
1. Product Information
Material: Gr1, Gr2, Gr5, Gr7, Gr12
Standard: ANSI B16.5, ASME B16.5, EN1092-1, JIS B2220, DIN2627-2628
Size: 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) .
Pressure Clase: PN0.25~32Mpa/ (DIN) PN6,PN10,PN16,PN25 though PN250/ 150LB, 250LB
,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB.
Sealing Surface: RF, FF, TG, RJ etc.
Technique: Froged and CNC Machined
Advantage:
- Long service life
- corrosion-resistant
- High yeiled strength and tensile strength
- Our moulds for flange are very complete, so we can produce flanges
in all standards, including EN1092-1, ASME B16.5, DIN and BS etc.
2. Why Choose us
- As a leading manufacturer of titanium products for over 16 years,
we have exported titanium flange to many countries, including
Italy, Russia, Turkey and Chile etc. The quality of our products is
widely recognized.
- We know the market very well so our price will make you more
competitive.
- We have a professional technical team. Our company offers a
complete service to you from A to Z, with our dedicated team.
3. Chemical requirements
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
4. Tensile requirements
| Grade | Tensile strength(min) | Yield strength(min) | Elongation(%) |
| ksi | M Pa | ksi | M Pa |
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 9 | 90 | 620 | 70 | 438 | 15 |
| 12 | 70 | 438 | 50 | 345 | 18 |
5. Detailed Images
