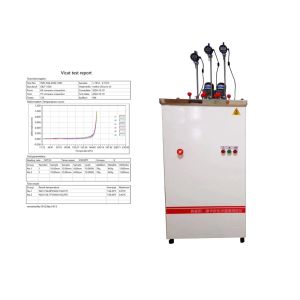

Innovative Computer Controlled Heat Deflection Temperature Plastic
HDT and VST Test Machine for Advanced Material Research
Overview:
The Computer Controlled Heat Deflection Temperature Plastic HDT and
VST Test Machine is engineered to determine the heat deflection
temperature (HDT) and Vicat softening temperature (VST) of
materials such as plastics and rubber. These two parameters are
critical for evaluating the thermal stability and high-temperature
performance of polymeric materials.
This machine serves as an essential testing instrument for research
and development (R&D) institutions, universities, and quality
assurance (QA) departments of enterprises—supporting material
formulation optimization, product performance validation, and
quality control in the polymer industry.
Additionally, the machine’s sample holders are equipped with an
up-and-down adjustment function, enabling flexible and precise
positioning of test samples to meet diverse testing requirements.
Product Introduction:
The Computer Controlled Heat Deflection Temperature Plastic HDT and
VST Test Machine is engineered to align with the rapid advancement
of the plastic industry and elevate the standards of material
research and testing.
These machines are designed in strict compliance with the latest
international and national standards, including:
- ISO 75-1:1993 (Plastics — Determination of temperature of
deflection under load)
- ISO 306:1994 (Plastics — Thermoplastic materials — Determination of
Vicat softening temperature (VST))
- GB/T 1633—2000 (Thermoplastic materials — Determination of Vicat
softening temperature (VST))
- GB/T 1634—2001 (Plastics — Determination of temperature of
deflection under load)
Computer-controlled, these machines boast stable performance,
user-friendly operation, and a high degree of automation. As such,
they stand as the most advanced testing instruments for measuring
the heat deflection temperature and Vicat softening temperature of
non-metallic materials.
Test Standards:
IS075(E),IS0306(E),GB/T8802,GB/T1633,GB/T1634
| Model | XRW-300E |
| Technical data | 1.Equipped with 6 stations (Ability to test 6 samples
simultaneously) 2.Automatic performance: A left for moving the samples 3.Air above 150 Degree centigrade, 150 Degree centigrade the
following water or natural cooling. 4.Deformation measurement: High precision digital display dial
gauge 5.Heating Rate: 50oC/h, 120oC/h 6.Max. Temperature Deviation: ±0.5oC 7. Deformation deviation: 0.01mm 8.Vicat load: 10N ± 0.2 N , 50N ± 1N 9.Fiber stress: 0.455 Mpa and 1.82 Mpa 10.temperature-control Range: room temperature ~ 300oC 11.Deformation Measuring Rage: 0 ~ 10mm 12.Sample Frame Number: 3~6 13.Test Span: 60~120mm 14.Heating Power: 6KW 15.Power Supply: 220V 50Hz 16.Display: Color touch screen |
| Type and display | Desk type Using PC control system |
| Standards | GB/T1633, GB/T1634, ISO75, ISO306,ASTM D648, ASTM D1525,ISO 2507 |
| Usage | Used to measure heat deformation and Vicat softening temperature of
thermoplastics material of plastic and rubber in the manufacturer,
scientific research and colleges. |
| Configuration | 1. Main frame 1 set 2. Electric cabinet 1 set 3. Specimen holder 3 sets(or 3 sets) 4. Vicat indenter 3 sets 5. Heat deflection indenter 3 sets 6. Displacement sensor 3 sets 7. Power line 2 sets 8. Connecting line 2 sets 9. Operation manual 1 set 10. Certificate 1 set 11. Packing list 1 set |
