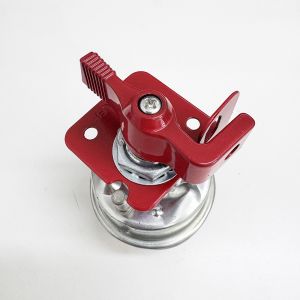

Product Name | Car Main Power Switch Locking Lever Kit Battery Switch Universal
Handle with Lock Block for Carter Battery Power Cut-Off |
Material | Plastic,copper |
Rated | 300A 6V to 36V |
Applied for | Car,RV,Yacht,truck etc |
Material | ABS+Metal |
Stud | M12 and M5 |
Terminal material | Tin-plated copper |
Approval | ROHS |
Photos
Features of Car Main Power Switch Locking Lever Kit Battery Switch
Universal Handle with Lock Block for Carter Battery Power Cut-Off
- Controls two systems, or it can be used to disconnect both positive
and negative of the same circuit (which is required in some
countries.)
- Contact ratings: 125A continuous, 750A intermittent.
- Silver contact surfaces. Epoxy-sealed and gasket-sealed.
- Both poles are separately insulated.
- Compatible with Littelfuse lock-out kits.
- Four 3/8" -24 stud terminals. Lockwasher and two brass hexnuts per
stud are provided.
- 3/4" -16 thread. Fits panels up through 1/4" (6.4mm).
- O-ring seal in mounting stem; gasket seal at terminal insulator.
Epoxy seal at case, mounting stem and locating pin.
- Heavy duty plated steel case.
Related types of battery switches
1Q:What can I do if I got a broken product from DONGGUAN TIANRUI?
A:First of all please tell us as soon as possible after we send a
new one to you immediately but please send the broken product to
us.You don't have to worry about the carriage charge we will pay
for that.
2Q:Are we a trader or manufacturer?
A:Both
3Q:Why do you have choose us?
A:High quality. Competive price. Fast shipping.
