PRODUCT DESCRIPTION |

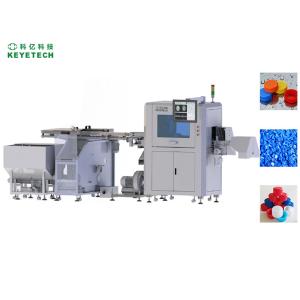

Product Name | Full Automatic Cap Vision Inspection Machine |
Inspection Defects | Black spot, color difference, impurity, thread, pressing ring,
broken ring, notch, batch edge, burr, flash, deformation,
dimension, gasket, inner plug, die number, etc. |
Detection Area | Bottle cap concave, top, side |
Voltage and current | Adapt to national standard |
Compressed air | 0.5Mpa - 0.8Mpa |
Speed | 2500pcs/min |
Precision | 0.1 mm |
Size (including cap feeder) | 3700*1300*1785mm |
Power | 5000 - 7000w |
Accuracy | 99.9% |
Weight | 350kg |
What product can be inspected? Caps Vision Inspection Machine
Plastic Cap / Metal cap / Lid — water caps, medicine caps, beverage caps, dairy caps, wine caps,
food caps, etc
Defects Detection - Caps Vision Inspection Machine
Inspection Theory
Inspection process of Keye Tech vision inspection system to detect appearance defects:
Feeding device: Products transfer to a workstation via feeding devices, entering
the inspection machine orderly one by one.
Image acquisition: High-pixel images are captured by customized system of self-developed industrial cameras and LED light sources.
Image processing: Captured images upload to our self-developed KVIS COULD AI Platform for few image annotation and model training(within 1h).
AI algorithm models: AI algorithms analyze the processed images, sort products into
"NG" (defective) and "OK" (qualified), and trigger inline rejection
of defective products via pneumatic devices.
Software scheduling: The software provides sample comparison standards, allowing
customers to select the most suitable criteria to balance accuracy
and defect rates.
Counting and box division: Defective products are instantly rejected into a separate box. Good products are counted for box division.
After-Sale Service
l Equipment installation and adjustment service: After the equipment is delivered, engineer is dispatched according
to the customer's requested date (within 7 days after machine's
arrival) to be responsible for the on-site commissioning. The time
is subject to the actual situation. Engineer will be in charge of
installation, adjustment and training.
l Free daily maintenance services: Our company provides free remote operation and maintenance online
services in Keye Tech AI COULD platform, particularly for the
system updating, algorithm setting, software adjustment, etc.
l Offline Training Class: Our company have regular offline training plan every year
including mechanics and software & algorithms, so domestic and
foreign clients can send their engineers to participate (at their
own expense).
