    Large Horizontal Scrap Cutting Machine With PLC Automatic For Recycling Facilities

    Ask Lasest Price
    Brand Name : Wanshida
    Model Number : Q43W-6300
    Certification : ISO9001,CE
    Price : USD98000-10800
    Payment Terms : L/C,T/T
    Supply Ability : 2sets/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    Large Horizontal Scrap Cutting Machine With PLC Automatic For Recycling Facilities

    Large Horizontal Scrap Cutting Machine With PLC Automatic For Recycling Facilities

    The Q43W-6300A Container Scrap Metal Shear is a high-performance hydraulic cutting machine designed to handle heavy-duty scrap processing in recycling yards, steel plants, and waste management facilities. Built within a standard container structure, it combines power, efficiency, and mobility, making it ideal for cutting oversized scrap metal into smaller, manageable sizes. With its advanced hydraulic system and PLC automatic control with remote operation, this shear delivers reliable, precise, and safe cutting performance for large-scale recycling operations.

    Applications

    The Q43W-6300A Container Scrap Shear is widely used in:

    • Scrap metal recycling yards – for cutting large ferrous and non-ferrous scrap into uniform sizes for easier transport.

    • Steel plants and processing facilities – to reduce scrap metal volume before smelting.

    • Waste management operations – for recycling large volumes of industrial scrap metal.

    • Ports and export facilities – preparing bulk scrap for international shipping.

    It is capable of processing square steel, angle steel, round bars, I-beams, channel steel, and steel plates, making it one of the most versatile machines in the recycling industry.

    Technical Specifications

    ParameterValue
    ModelQ43W-6300A Container Scrap Metal Shear
    Cutting Cylinders (Press Force)2890 × 2 kN (2 pcs)
    Feeding Mouth (L×W)3700 × 2500 mm
    Output Mouth (W×H)1500 × 400 mm
    Blade Length1500 mm
    Cutting Speed3–4 cuts/min
    Scrap Capacity8–10 t/h
    Scrap Size Capacity

    Square steel: 120 × 120 mm;

    Angle steel: 200 × 200 × 20 (3 pcs);

    Round steel: Φ130 mm;

    I-beam: 500 × 162 × 16 mm;

    Steel plate: 40 × 1000 mm;

    Channel steel: 400 × 104 × 14.5 mm (2 pcs)

    Hydraulic Oil Cooling SystemAir Cooling System
    Hydraulic System Pressure22.0 MPa (Max. 25.5 MPa)
    Power Supply380V / 60 Hz
    Control MethodPLC Automatic + Remote Control

    Advantages of Q43W-6300A Scrap Shear

    1. Exceptional Cutting Force – Dual cylinders with 2890 kN press force each ensure strong and efficient cutting performance.

    2. High Productivity – Cutting speed of 3–4 times per minute with a processing capacity of 8–10 tons/hour.

    3. Versatile Material Handling – Cuts a wide range of scrap shapes including steel plates, I-beams, and heavy profiles.

    4. Advanced Hydraulic System – Operates at up to 25.5 MPa, delivering stable power with air-cooled oil for durability.

    5. Smart Operation – PLC control and remote operation increase precision, safety, and ease of use.

    6. Cost-Effective Recycling – Reduces scrap size on-site, lowering transportation and logistics costs.

    7. Robust Construction – Designed for heavy-duty, long-term performance in demanding environments.

    FAQs

    Q1: What metals can the Q43W-6300A cut?
    A1: Square steel (120×120 mm), angle steel (200×200×20 mm), round steel (Φ130 mm), I-beams, steel plates, and channel steel.

    Q2: What is the machine’s cutting speed?
    A2: 3–4 cuts per minute.

    Q3: What is the processing capacity?
    A3: 8–10 tons of scrap metal per hour.

    Q4: How is the hydraulic system cooled?
    A4: Through an air cooling system, ensuring stable performance.

    After-Sales Service

    At Jiangsu Wanshida Hydraulic Machinery Co., Ltd., we provide:

    • One-year guarantee with lifelong maintenance.

    • Installation and setup support.

    • Operator training (on-site or remote).

    • Spare parts and maintenance service to ensure peak performance.

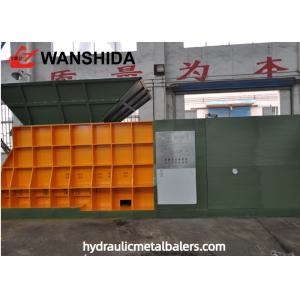

    Container Scrap Shear Image
