    DDR4 SDRAM Memory IC Chip with 8Gb Density 512M x 16 Organization in BGA Package

    Ask Lasest Price
    Brand Name : Original Factory
    Model Number : P3A8GL4BLF-GJN
    Certification : Lead free / RoHS Compliant
    Price : Contact for Sample
    Payment Terms : T/T,L/C,Western Union
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    DDR4 SDRAM Memory IC Chip with 8Gb Density 512M x 16 Organization in BGA Package

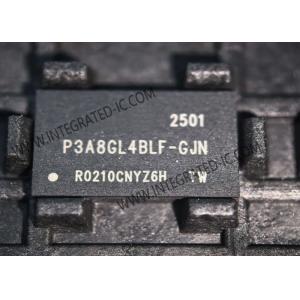

    P3A8GL4BLF-GJN Memory IC Chip DDR4 8Gb SDRAM Memory BGA Package


    Product Description Of P3A8GL4BLF-GJN
    P3A8GL4BLF-GJN is DDR4 8Gb SDRAM Memory in BGA package.

    DDR4 memory chips offer higher frequencies, lower voltages and greater capacities, delivering enhanced performance and increased data transfer rates.


    Features Of P3A8GL4BLF-GJN
    Data Integrity
    - Auto Self Refresh (ASR) by DRAM built-in TS
    - Auto Refresh and Self Refresh Modes
    DRAM Access Bandwidth
    - Separated I0 gating structures by Bank Groups
    - Self Refresh Abort
    - Fine Granularity Refresh
    Signal Synchronization
    - Write Leveling via MR settings1
    - Read Leveling via MPR
    Reliability & Error Handling
    - Command/Address Parity
    - Databus Write CRC
    - MPR readout
    - Boundary Scan (X16)
    - Post Package Repair
    Signal Integrity
    - Interal VREFDQ Training
    - Read Preamble Training
    - Gear Down Mode
    - Per DRAM Addressability
    - Configurable DS for system compatibility
    - Configurable On-Die Termination
    - Data bus inversion (DBI)
    - ZQ Calibration for DS/ODT impedance accuracy via external ZQ pad (240Ω ± 1%)
    Power Saving & Efficiency
    - POD with VDDQ termination
    - Command/Address Latency (CAL)
    - Maximum Power Saving
    - Low-power Auto Self Refresh (LPASR)


    Programmable Functions Of P3A8GL4BLF-GJN
    Output Driver Impedance (34/48)
    CAS Write Latency (9/10/11/12/14/16/18/20)
    Additive Latency (0/CL-1/CL-2)
    CS to Command Address Latency (3/4/5/6/8)
    Command Address Parity Latency (4/5/6)
    Write Recovery Time (10/12/14/16/18/20/24)
    Burst Type (Sequential/Interleaved)
    RTT_PARK (34/40/48/60/80/120/240)
    RTT_NOM (34/40/48/60/80/120/240)
    RTT_WR (80/120/240)
    Read Preamble (1T/2T)
    Write Preamble (1T/2T)
    Burst Length (BL8/BC4/BC4 or 8 on the fly)
    LPASR (Manual: Normal/Reduced/Extended, Auto:TS)
