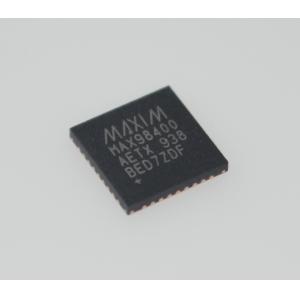

    MAX98400A Class D Amp with 20W Output, 92% Efficiency, I2C Control, Integrated Boost, 8ms Startup, Full Protection, & 6.5μV Noise for Premium Portable Audio

    Ask Lasest Price
    Brand Name : Maxim Integrated
    Model Number : MAX98400AETX+T
    Certification : CE, GCF, ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union,
    Supply Ability : 1000pcs per month
    Delivery Time : 3-5 working days after received the payment
    • Product Details
    • Company Profile

    MAX98400A Class D Amp with 20W Output, 92% Efficiency, I2C Control, Integrated Boost, 8ms Startup, Full Protection, & 6.5μV Noise for Premium Portable Audio

    MAX98400A Class D Amp with 20W Output, 92% Efficiency, I2C Control, Integrated Boost, 8ms Startup, Full Protection, & 6.5μV Noise for Premium Portable Audio


    Features

    ● Wide 8V to 28V Supply Voltage Range

    ● Single-Supply Operation

    ● Low EMI: Active Emissions Limiting

    ● Clipping Limiter

    ● Low Quiescent Current

    ● Thermal Foldback

    ● Thermal and Overcurrent Protection


    Applications

    ● LCD/PDP Televisions

    ● LCD Monitors

    ● MP3 Docking Stations

    ● Notebook PCs


    Description

    The MAX98400A/MAX98400B Class D amplifiers provide high-performance, thermally efficient amplifier solutions. The MAX98400A delivers 2x20W into 8Ω loads or 1x40W into a 4Ω load. The MAX98400B delivers 2x12W into 8Ω loads.

    An integrated limiting circuit prevents output clipping distortion, protects small speakers from transient voltages, and reduces power dissipation.

    A thermal-foldback feature can be enabled to automatically reduce the output power at above a junction temperature of +120°C. Traditional thermal protection is also available in addition to robust overcurrent protection.

    The ICs operate from a single 8V to 28V supply and provide a high 67dB PSRR, eliminating the need for a regulated power supply. They offer up to 90% efficiency from a 12V supply.

    Filterless modulation allows the ICs to pass EN55022B EMI limits with 1m cables using only a low-cost ferrite bead and small-value capacitor on each output.

    Both devices feature eight digitally controlled gain settings.

    Comprehensive click-and-pop reduction circuitry minimizes noise coming into and out of shutdown.

    The MAX98400A/MAX98400B are available in 36-pin and 24-pin TQFN packages, respectively, and are specified over the -40°C to +85°C temperature range.


    INFORMATION

    Category
    Manufacturer
    Analog Devices Inc./Maxim Integrated
    Series
    -
    Packaging
    Tape & Reel (TR)
    Cut Tape (CT)
    Digi-Reel®
    Part Status
    Active
    Type
    Class D
    Output Type
    2-Channel (Stereo)
    Max Output Power x Channels @ Load
    20W x 2 @ 8Ohm
    Voltage - Supply
    8V ~ 28V
    Features
    Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown
    Mounting Type
    Surface Mount
    Operating Temperature
    -40°C ~ 85°C (TA)
    Supplier Device Package
    36-TQFN (6x6)
    Package / Case
    36-WFQFN Exposed Pad
    Base Product Number

    Drawing
