• 21ER10024 21ER-10024 Harness Applied For Hyundai Excavator Spare Parts Machine R200W3

• Specifiion

• Applicable models

Excavator Hyundai R200W3

• More harness supplied to Hyundai machine

  21EK-20200 HARNESS-REAR COMBI

  HL720-3, HL720-3C, HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL7303, HL7303C, HL730TM-9, HL730TM-9A, HL730TM3, HL730TM3C, HL730TM7, HL730TM7A, HL740-3, HL740-7, HL740-7A, HL740-7S, HL...

  21EA-00190 HARNESS-EXT,START RY

  H80, HL730-7, HL730TM7, HL740-7, HL740TM-7, HL757-7, HL757TM7, HL760-7, HL770-7, HX330L, R1200-9, R130W3, R140LC-7, R140W7, R170W3, R180LC3, R200NLC3, R200W3, R300LC9S, R305LC7, R320LC7, R320LC7A, R32...

  21EK-20250 HARNESS-N/PLATE LAMP

  HL720-3, HL720-3C, HL7303, HL7303C, HL730TM3, HL730TM3C, HL740-3, HL740-3ATM, HL740TM-3, HL740TM-3A, HL750, HL750-3, HL750TM3, HL760-3, HL760-3ATM, HL770, HL770-3, HL770-3ATM, HL780-3, HL7803A, R130W3...

  AM83303700-2 HARNESS-JUMP WIRE

  33HDLL, R130W3, R160LC3, R170W3, R180LC3, R200NLC3, R200W3, R210LC3, R210LC3H, R210LC3LL, R250LC3, R290LC3, R290LC3H, R320LC3, R360LC3, R360LC3H, R450LC3A

  21EA-60731 HARNESS-WIRE SWITCH

  R130W3, R170W3, R200W3, R95W3

  21EK-50010 HARNESS(1)-CAB

  33HDLL, 42HDLL, R130LC3, R170W3, R180LC3, R200NLC3, R200W3, R210LC3, R210LC3H, R210LC3LL, R290LC3, R290LC3H, R290LC3LL, R320LC3, R360LC3, R360LC3H, R450LC3, R450LC3A

  24L3-10420 HARNESS-REAR COMBI

  HL740-3, HL740TM-3, HL750-3, HL750TM3, HL760-3, HL760-3ATM, HL770-3, HL770-3ATM, R200W3

  21ER-10012 HARNESS-FRAME

  R200W3

  21ER-10013 HARNESS-FRAME

  R200W3

  21ER-10014 HARNESS-FRAME

  R200W3

  21EM-30190 HARNESS-BOOM

  R200W3, R210LC3H, R250LC3, R290LC3H

  21ER-10002 HARNESS-MAIN

  R200W3

  21ER-10023 HARNESS-HYD

  R200W3

  21ER-10022 HARNESS-HYD

  R200W3

  21ER-10016 HARNESS-FRAME

  R200W3

  21ER-10015 HARNESS-FRAME

  R200W3

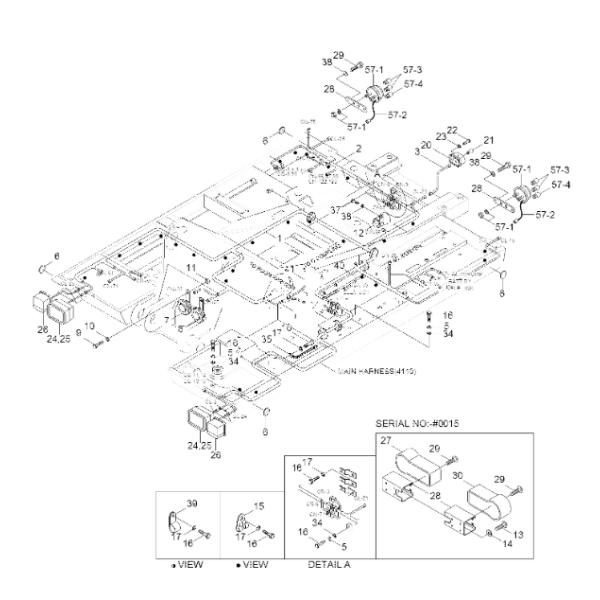

• alog parts list

  Pos.	Part No	Qty	Parts name	Comments
  1	21ER-10012	[1]	HARNESS-FRAME
  1	21ER-10013	[1]	HARNESS-FRAME
  1	21ER-10014	[1]	HARNESS-FRAME
  1	21ER-10015	[1]	HARNESS-FRAME
  1	21ER-10016	[1]	HARNESS-FRAME
  1-1.	21ER-20010	[1]	COVER & DECAL-F/BOX	NOT SHOWN
  2	21ER-10022	[1]	HARNESS-HYD
  2	21ER-10023	[1]	HARNESS-HYD
  2	21ER-10024	[1]	HARNESS-HYD
  3	21EK-20250	[1]	HARNESS-N/PLATE LAMP
  3	21N4-11040	[1]	HARNESS-EXT
  5	S403-102006	[4]	WASHER-PLAIN
  6	21EK-10150	[4]	REFLECTOR-SIDE
  7	21EA-60521	[1]	HORN-LOW
  8	21EA-60531	[1]	HORN-HIGH
  9	S015-080166	[2]	BOLT-HEX
  10	S403-082006	[2]	WASHER-PLAIN
  11	S205-081006	[2]	NUT-HEX
  12	21E4-2003	[1]	BUZZER-TRAVEL ALARM
  13	S161-050166	[8]	SCREW
  14	S403-052006	[8]	WASHER-PLAIN
  15	21E9-00170	[29]	CLIP-HARNESS
  16	S017-100166	[31]	BOLT-HEX
  17	S403-102006	[31]	WASHER-PLAIN
  20	21EK-10160	[1]	LAMP-NUMBER PLATE
  21	21EK-10260	[1]	BULB
  22	S161-040166	[2]	SCREW
  23	S403-042006	[2]	WASHER-PLAIN
  24	21EK-10120	[2]	LAMP-HEAD
  25	21EK-10130	[2]	BULB
  26	21EK-10350	[2]	LAMP-FLASHER POSITION
  26-1.	21EK-10290	[1]	BULB	NOT SHOWN
  26-2.	21EK-10280	[1]	BULB	NOT SHOWN
  27	21EA-30460	[1]	LAMP ASSY-COMB,RR,RH
  27-1.	S861-172100	[2]	BULB(21W)	NOT SHOWN
  27-2.	S863-172105	[1]	BULB(21/5W)	NOT SHOWN
  28	21EA-30380	[2]	BRACKET-COMBI LAMP
  28	21EK-50060	[2]	BRACKET-COMBI LAMP
  29	S161-050252	[8]	SCREW
  29	S015-060202	[4]	BOLT-HEX
  30	21EA-30450	[1]	LAMP ASSY-COMB,RR,LH
  30-1.	S861-172100	[2]	BULB(21W)	NOT SHOWN
  30-2.	S863-172105	[1]	BULB(21/5W)	NOT SHOWN
  34	S431-100002	[4]	WASHER-INTERNAL T/LOCK
  35	24L1-30720	[1]	STRAP-EARTH
  37	S015-060166	[2]	BOLT-HEX
  38	S411-060006	[2]	WASHER-SPRING
  38	S411-060006	[6]	WASHER-SPRING
  39	S543-260002	[2]	CLAMP-TUBE
  40	21ER-10050	[1]	HARNESS-EXT	2PCS BOOM
  41	21E9-20200	[1]	HARNESS-EXT	Q/COUPLING
  57	21EK-10410	[2]	LAMP-TAIL STOP FLASHER
  57	24L3-10410	[2]	LAMP-TAIL STOP FLASHER
  57-1.	21EK-10180	[1]	LAMP-TAIL STOP FLASHER
  57-2.	21EK-20200	[1]	HARNESS-REAR COMBI
  57-2.	24L3-10420	[1]	HARNESS-REAR COMBI
  57-3.	21EK-10290	[2]	BULB
  57-4.	21EK-10270	[1]	BULB(5W)



• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 6-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .

WHO WE ARE: We are excavator spare parts professional supplier.

WHAT WE DO: Our supply chain cover Engine parts, Hydraulic parts, final drive and swing gear parts, undercarriage parts, GET attachment parts, air conditioning parts, quick wear parts. We have been serving either in domestic market or overseas market, over 8 years' experience in excavator parts area enable us to have firm cooperation and partnership with many overseas customers.

WHOM WE SERVICE: Construction Company, Excavator parts wholesaler, Excavator parts dealer, Government, Personal.

Customer satisfaction and optimal machine performance are what ANTO Parts strive for by providing large storage of spare parts, reliable service and readily available stock. Approximately 95% of all most well known brands( Komatsu Hitachi Vo-lvo Hyundai Doosan Kobelco Kato Sumitomo JCB, SANY, XCMG, LONGKING, and so on) of excavator parts are continuously in stock.

“Customer can get quality and correct parts at best price, soonest way” is our final target.

We now have the biggest parts warehouse and improved storage system, 90 000 cubic meter room making it possible to storage the most commonly required construction machinery parts for instant delivery for customer urgent’ use.

We can supply spare parts for different kinds of request, either for genuine spare parts, OEM parts, aftermarket parts, or second-hand used spare parts.

We stock various types of assemblies of hydraulic pump, final drive and swing drive, control valve, OEM or Genuine, from Korea and Japan, or China made.

You can count on us for various range of spare parts as below:

Engine spare parts, undercarriage track parts, Seal kits parts, Electric spare parts, Hydraulic spare parts, attachment bucket and rock breaker spare parts.
