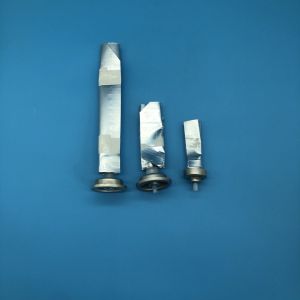

20mm ,1 Inch Aerosol Bag-on-Valve System (BOV) for Multi-Purpose
Use
Product Overview
Our Bag-on-Valve (BOV) system is a next-generation aerosol
packaging technology that separates the product from the propellant
using a laminated bag sealed inside the can. This innovative design
ensures maximum product purity, extended shelf life, and 100%
product emptying with no contamination.
Featuring one-inch stainless steel female valves, our BOV solutions
are ideal for cosmetics, medical sprays, household care, and
food-grade applications. The eco-friendly system is
propellant-efficient and enables spraying at all angles for
superior versatility and user experience.
Key Features
- 100% product emptying with minimal waste
- Hygienic, sterile packaging with no propellant contact
- All-angle spraying capability, including upside-down use
- Extended shelf life through oxygen and moisture barriers
- Environmentally friendly design with reduced propellant
requirements
- Customizable bag sizes and valve types available
Technical Specifications
| Model | Max Capacity | Length * Height (mm) | Aerosol Can Size |
|---|
| JC-100-P250 | 300ml | 185 * 100 | 59 * 210 |
| JC-100-P200 | 220ml | 145 * 100 | 53 * 180 |
| JC-100-P150-1 | 150ml | 125 * 90 | 50 * 150/155 |
| JC-100-P100 | 120ml | 100 * 90 | 50 * 125 |
| JC-100-P80 | 80ml | 100 * 80 | 40 * 120/130 |
| JC-100-P65 | 65ml | 90 * 80 | 40 * 110/35 * 110 |
| JC-100-P50 | 50ml | 90 * 65 | 35 * 110 |
Application Scenarios
Cosmetics & Personal Care
Medical & Pharmaceutical
Food Industry
Household Products
Industrial & Automotive
Ideal for: Sunscreen, deodorants, nasal sprays, cooking oil sprays,
air fresheners, lubricants, and more.
Frequently Asked Questions
Q: How does a Bag-on-Valve system work?
A: The product is filled into a sealed bag inside the can, while
the propellant is placed between the bag and the can wall. This
separation ensures no contamination.
Q: What are the benefits compared to traditional aerosol valves?
A: BOV offers 100% product dispensing, cleaner spraying, longer
shelf life, and the ability to spray at any angle.
Q: Is it suitable for pharmaceutical use?
A: Yes, our BOVs are ISO cleanroom manufactured and support aseptic
filling and sterilization processes.
Q: Can I request custom bag sizes and valve types?
A: Absolutely. We offer OEM/ODM customization for bag sizes,
valves, and can designs based on customer needs.
Q: What industries commonly use BOV?
A: Cosmetics, pharmaceuticals, household cleaning, automotive,
food, and even veterinary care.
