    50KV 5600pF High Voltage Doorknob Capacitor for Smart Grid Lightning Protection with Precision Engineering and Pulse Power Applications

    Ask Lasest Price
    Brand Name : XIWUER
    Model Number : CT8-2-50KV-5600pF
    Certification : ISO9001,ISO14001,ISO45001
    Price : Negotiable
    Payment Terms : L/C,T/T
    Supply Ability : 4,000,000 pcs a year
    Delivery Time : 5-7days
    • Product Details
    • Company Profile

    50KV 5600pF High Voltage Doorknob Capacitor for Smart Grid Lightning Protection with Precision Engineering and Pulse Power Applications

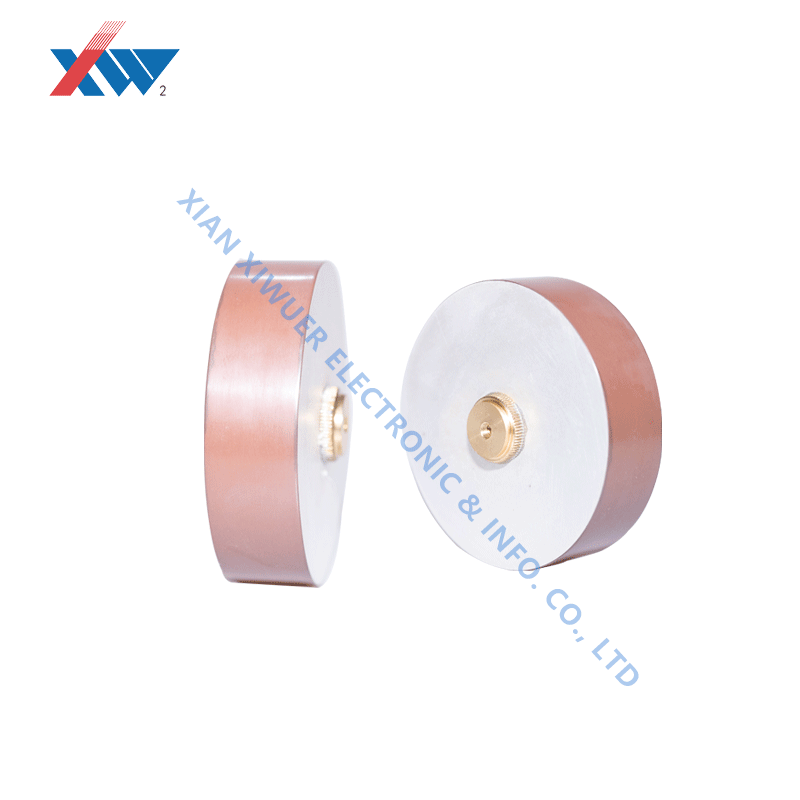

    High Voltage Doorknob Capacitor product image


    No.SpecificationDissipationWithstanding voltageInsulation resistanceDimension(mm)
    120kV-2000pF








    ≦0.0040








    1.5Ur 1min








    ≧1.0×105MΩ

    DHLDM
    220kV-10000pF451923125
    320kV-18000pF651519125
    430kV-1000pF801725125
    530kV-2700pF452432124
    630kV-12000pF602028124
    740kV-150pF20334184
    840kV-500pF28334184
    940kV-7500pF802429126
    1040kV-10000pF802226165
    1150kV-1000pF503034124
    1250kV-1000pF322731165
    1350kV-5600pF803135165
    1460kV-1500pF503134125
    1560kV-3000pF653235165
    16100kV-500pF505458125
    17100kV-2000pF513235165
    18Insulator type 100kV-1500pF683640165
    19150kV-820pF6595100125
    20200kV-600pF509094165


    Application Deep Dive - Capacitor Solutions for Smart Grid Lightning Protection
    With the development of smart grids, lightning arresters are shifting from passive protection to active monitoring and predictive maintenance. In smart SPDs integrated with NB-IoT, high-voltage door handle capacitors not only perform traditional filtering functions but also provide a stable voltage sampling reference for online monitoring circuits. For example, Dekai Technology's smart capacitor cabinet SPDs upload leakage current and temperature data in real time via RS485 communication. The door handle capacitors' low voltage coefficient and linear temperature characteristics (<±0.5% change in value from -40°C to +85°C) ensure the accuracy of monitoring data. In UHV substations, customized door handle capacitors (voltage ≥ 300kV) can form an RC absorption circuit with ZnO varistors, reducing the steepness of switching overvoltage by over 60%, protecting GIS (gas insulated switchgear) from VFTO (fast transient overvoltage).

    High Voltage Doorknob Capacitor application diagram
    High Voltage Doorknob Capacitor technical illustration
    High Voltage Doorknob Capacitor installation example
