    HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket

    Ask Lasest Price
    Brand Name : Hightop
    Model Number : HT-08
    Certification : CE,EPA,ISO,TUV
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability : 100 set per month
    Delivery Time : 5-14 work days
    • Product Details
    • Company Profile

    HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket

    Detail description
    1.Hightop excavator unique big arm structure design, not easy to break.
    2.The machine operation front pipeline is clear, and there is a protective cover to protect the pipeline to avoid the pipeline exposed.
    3. The excavator arm cylinder adopts famous brand, cylinder diameter integrated processing, more advanced than welding technology.
    4.The structural parts of the excavator itself are finely processed, after shot blasting, pickling, baking paint and other processes, the surface gloss is high, and the adhesion of the paint is high.
    5 .0.8 ton mini excavator hydraulic pump is pure cast iron pump, at 3600 rpm engine speed, more wear-resistant and durable than aluminum pump.
    6.Hydraulic pipes are made of high quality imported pipe brands
    7.0.8T excavator choose rubber tracks, which can effectively disperse the weight of the machine, thus reducing the pressure on the ground. For example, in scenarios such as urban road construction, landscaping or indoor work, the rubber tracks will not scratch or crush the ground as easily as steel tracks. The advantage of rubber tracks is especially obvious in golf course lawn maintenance, restoration of ancient buildings and other work environments that require high requirements for ground flatness and integrity.
    8. The appearance of the machine is beautifully designed, and the color can be customized in yellow, red, blue, black, and so on.

    Parameter

    Performance Parameter


    Rated power

    12HP

    Bucket Capacity

    0.025 m3

    Engine Model

    changchai 192

    Weight

    650 kg

    Max. digging force

    7.5KN

    Pump form

    Single gear pump

    Set working pressure

    14Mpa

    Swing speed

    12 rpm

    Travel speed

    2.2Km/h

    Gradeability

    30°

    Ground pressure

    19Kpa

    Working Range


    Max. dgging distance

    2450mm

    Max.digging depth

    1200mm

    Max.diging height

    2350mm

    Max.dumping height

    1600mm

    Min.Swing radius

    1100mm

    Max. Upgrade height of blldozer blade

    120mm

    Max. Digging depth of blldozer blade

    200mm

    Dimensions


    Total width

    720-780mm

    Total height

    1300mm

    Total length

    2430mm

    Min. ground clearance

    80mm

    Track ground length

    1140mm

    Track width

    150mm


     HT08 Mini Excavator
     HT08 Mini Excavator
     HT08 Mini Excavator
     HT08 Mini Excavator
     HT08 Mini Excavator
     HT08 Mini Excavator

     HT08 Mini Excavator

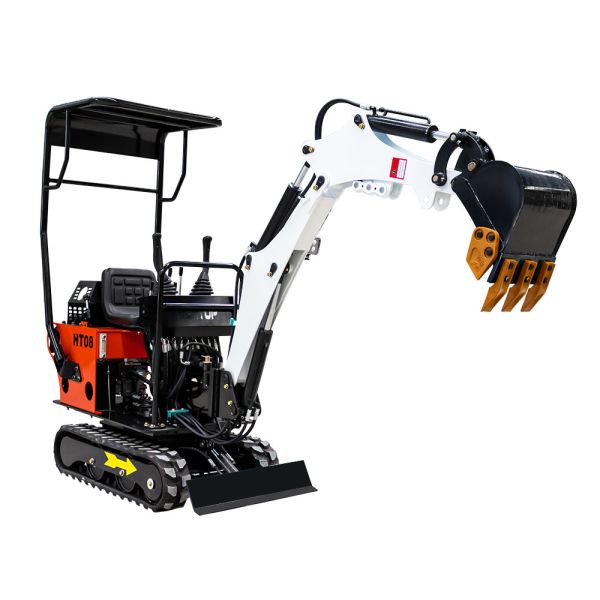

    Quality HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket for sale
