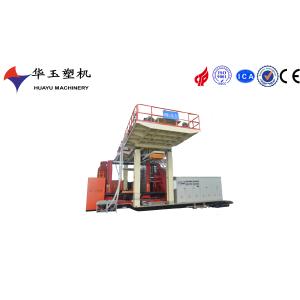

Huayu 5000L Three Layers Blow Moulding Machine with Good Quality

    Buy cheap Huayu 5000L Three Layers Blow Moulding Machine with Good Quality from wholesalers

    Buy cheap Huayu 5000L Three Layers Blow Moulding Machine with Good Quality from wholesalers
    • Buy cheap Huayu 5000L Three Layers Blow Moulding Machine with Good Quality from wholesalers

    Huayu 5000L Three Layers Blow Moulding Machine with Good Quality

    Ask Lasest Price
    Brand Name : HUAYU
    Model Number : HY5000L-3Layer
    Certification : CE,ISO9001
    Price : Negotiate
    Payment Terms : L/C, T/T
    Supply Ability : 4 sets per month
    Delivery Time : 5 months
    • Product Details
    • Company Profile

    Huayu 5000L Three Layers Blow Moulding Machine with Good Quality

    Servo motor ,
    IKV screw barrel ,
    Diehead seals use hard seal
    Moog 200 points
    Touch screen 12''
    New type of robot arm
    Made in China & Made by Weifang Huayu Plastic Machinery Co.,Ltd.
    The seller transports the goods to Qingdao Port, China after inspection of machine.
    All the inspection work should be performed as the technical configurations and parameters which are stipulated in the contract.
    The machine will be disassembled into many parts for container transportation. The seller is responsible for packing and fixing all these parts in container well according to their own experience.
    The seller's machine should be passed the ISO9001, CE certification.


    Basic Specification
    applicable materialHDPE

    China·HUAYU

    capacity range1000-5000L,3layers
    VoltagePending
    total power690kw
    average power420kw
    Machine dimension (L*W*H)10*8*8.8
    productivity4-18pcs/h
    Auto Feeder
    hopper materialstainless steelStable performance, easy maintenance
    feeding typespring loaded/vacuum loaded
    feeding motor2.2/2.2/2.2kw
    Extrusion System
    Screw diameter130/150/130mmNitrided 38CrMoAIA
    Screw L/D ratio28:1special designed screw can ensure the material plasticizing uniform and efficient
    Extruder motor110/132/110kw
    Reducer375/420/375Best quality brand in china ,long life and low noise
    Screw heating power5.5kw*16
    塑化能力Plasticizing capacity1000kg/h

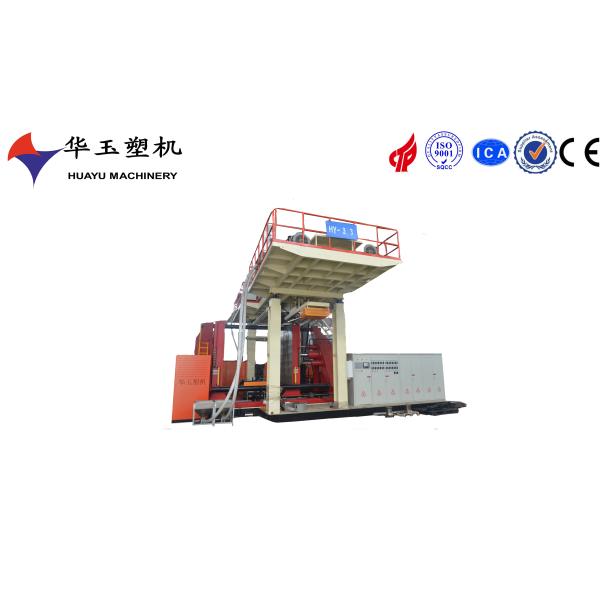

    Quality Huayu 5000L Three Layers Blow Moulding Machine with Good Quality for sale
