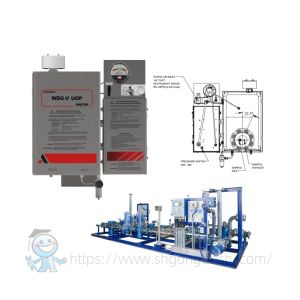

    Ametek Hydrocarbon Processing Gas Analyzer Thermox WDG-IV UOP Analyzers Low Concentration Oxygen Analyzer

    Ask Lasest Price
    Brand Name : Ametek
    Model Number : WDG-IV UOP/WDG-V UOP
    Price : US $99999.00 - 105500.00/ Unit
    Payment Terms : T/T
    Supply Ability : 50 units per year
    Delivery Time : 90 work days
    • Product Details
    • Company Profile

    Ametek Hydrocarbon Processing Gas Analyzer Thermox WDG-IV UOP Analyzers Low Concentration Oxygen Analyzer

    Ametek Thermox WDG-IV & WDG-V UOP Oxygen Analyzers | UOP-Specified Combustion Control for Refinery Furnaces

    Product Overview

    The UOP-Specified Combustion Control Ametek Thermox WDG-IV UOP WDG-V UOP Oxygen Analyzers are precision instruments designed for oxygen measurement in refinery furnaces and hydrocarbon processing environments. Combining the reliability of zirconia sensor technology with UOP-specific engineering, these analyzers deliver unmatched accuracy for continuous catalyst regeneration (CCR) and flue gas monitoring. The dual-model system supports both low-concentration oxygen detection (WDG-IV) and in-situ flue gas analysis (WDG-V), ensuring optimal combustion control and emissions compliance.

    Technical Parameters

    ParameterWDG-IV UOP SpecificationWDG-V UOP Specification
    Measurement PrincipleZirconia net oxygen sensorIn-situ zirconia probe
    Range0-1% to 0-100% O₂0-1% to 0-25% O₂
    Accuracy±0.75% of reading or ±0.05% O₂±0.5% of reading or ±0.01% O₂
    Response Time<5 seconds (90% step)<3 seconds (90% step)
    Power Requirements115/230 VAC, 47-63 Hz100-240 VAC, 50/60 Hz
    Output Signals4-20 mA, HART4-20 mA, Modbus RTU, HART, Foundation Fieldbus
    Safety CertificationSIL-2 certifiedSIL-2 certified

    Key Features

    UOP-Specific Engineering: Tailored for UOP Continuous Catalyst Regeneration (CCR) processes and refinery furnace applications.

    Dual-Mode Capability: WDG-IV for low-concentration O₂ detection; WDG-V for in-situ flue gas monitoring.

    Advanced Diagnostics: Predictive maintenance alerts, self-calibration, and fault detection via integrated HMI.

    Robust Construction: High-temperature resistant probes and corrosion-resistant enclosures for harsh environments.

    Digital Integration: Seamless connectivity with DCS/PLC systems via HART, Modbus, and Foundation Fieldbus.

    Applications

    Refinery Furnaces: Optimizes air-fuel ratios for efficient combustion and reduced NOx emissions.

    UOP CCR Platforming: Precision O₂ control during catalyst regeneration to prevent over-oxidation.

    Sulfur Recovery Units: Monitors oxygen levels for optimal Claus process performance.

    Ethylene & Hydrogen Production: Ensures gas purity and process safety in steam crackers and reformers.

    Power Generation: Supports combustion control in coal, gas, and biomass power plants.
