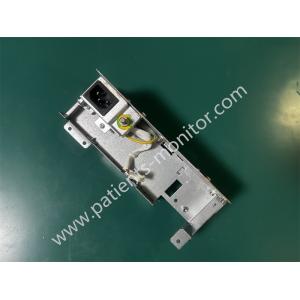

Mindray IPM10 monitor Iron Frame of the includes a three-pronged power interface assembly Metal Frame for Monitor

    Buy cheap Mindray IPM10 monitor Iron Frame of the includes a three-pronged power interface assembly Metal Frame for Monitor from wholesalers

    Buy cheap Mindray IPM10 monitor Iron Frame of the includes a three-pronged power interface assembly Metal Frame for Monitor from wholesalers
    • Buy cheap Mindray IPM10 monitor Iron Frame of the includes a three-pronged power interface assembly Metal Frame for Monitor from wholesalers
    • Buy cheap Mindray IPM10 monitor Iron Frame of the includes a three-pronged power interface assembly Metal Frame for Monitor from wholesalers
    • Buy cheap Mindray IPM10 monitor Iron Frame of the includes a three-pronged power interface assembly Metal Frame for Monitor from wholesalers
    • Buy cheap Mindray IPM10 monitor Iron Frame of the includes a three-pronged power interface assembly Metal Frame for Monitor from wholesalers
    • Buy cheap Mindray IPM10 monitor Iron Frame of the includes a three-pronged power interface assembly Metal Frame for Monitor from wholesalers
    • Buy cheap Mindray IPM10 monitor Iron Frame of the includes a three-pronged power interface assembly Metal Frame for Monitor from wholesalers

    Mindray IPM10 monitor Iron Frame of the includes a three-pronged power interface assembly Metal Frame for Monitor

    Ask Lasest Price
    Brand Name : Mindray
    Model Number : IPM10
    Price : USD
    Payment Terms : T/T,Western Union,Paypal
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    Mindray IPM10 monitor Iron Frame of the includes a three-pronged power interface assembly Metal Frame for Monitor

    Mindray IPM10 monitor Iron Frame of the includes a three-pronged power interface assembly Metal Frame for Monitor

    Mindray IPM10 monitor's iron frame serves as its structural support and power connection hub. It consists of a sturdy, one-piece steel plate and a three-pin power connector assembly. The iron frame secures and supports internal components, while the three-pin power connector assembly serves as the key node for external AC power input. Their integrated design fully meets the stringent structural stability and electrical safety requirements of medical equipment, ensuring the monitor's dual core functionality of physical stability and secure power input.

    Product Specifications
    TypeIron Frame of the includes a three-pronged power interface assembly
    Application MachineMindray IPM10
    MaterialMetal
    Input powerAC 100-240V
    Ground resistance≤ 0.1Ω
    Operating temperature-20℃~60℃
    Storage temperature-10℃~50℃
    Plug and unplug life≥ 1000 times
    Size320mm*240mm*110mm
    Weight1.8kg
    Core Functions
    1. Fixation and Support

      The iron frame serves as the monitor's "skeleton," providing a stable mounting base for all core components and securing key components, preventing vibration during device movement that could loosen connections between the motherboard and other modules. It also mitigates external shock, impact, and collisions, minimizing damage to internal components.

    2. Power Safety Hub

      The three-pin power connector assembly is the monitor's sole connection to the external AC power supply, accepting a wide voltage range of AC 100-240V (50/60Hz), adapting to different regions.

    3. Electromagnetic Shielding: Enhances the device's anti-interference capabilities.

      The steel plate material of the iron frame provides excellent electromagnetic shielding properties, forming a "double shield" with the device casing to prevent radiation from interfering with signal transmission within the internal circuitry. This ensures stable operation of the monitor in high-interference environments such as operating rooms, without data drift or functional abnormalities.

    4. Assisted Device Heat Dissipation: The iron frame utilizes a combination of "structural heat conduction and ventilation" to aid heat dissipation, extending the device's service life and reducing maintenance costs.

    Frequently Asked Questions
    Q1: The device casing is leaking (slight numbness when touched). The measured leakage current is 0.3mA. What's the problem?
    A1: It's most likely a ground fault. Check the grounding pin on the power plug and the outlet for proper grounding. If the plug or outlet is faulty, replace it and test again. If the plug or outlet is functioning properly, open the device casing and check whether the grounding terminal connecting the interface assembly to the iron frame is loose or oxidized. Resolder or replace the grounding wire. If leakage persists despite proper grounding, it may be due to insulation failure in the power module. Replace the power module to prevent increased leakage current.
    Q2: Is there any after-sales service guarantee for this accessory? What should I do if there are any quality issues?
    A2: All our products are tested and approved by professional engineers before shipping. If you discover any quality issues, please take photos and videos and contact our staff immediately for resolution. All our products come with a minimum three-month warranty.
    Q3: What other products do you offer? Can I purchase other products from you together?

    A3:Our company specilized in patient monitors, defibrillation, ultrasound tranducers, ECG machies, anesthesia, etc, machines and their accessories.

    This is our website: https://www.patients-monitor.com/

    If you have any other needs, please contact me freely.

    Product Images
    Product Image 1
    Product Image 2
    Ordering Information
    Payment MethodsBank Transfer / PayPal / Western Union
    Shipping MethodsDHL / FedEx
