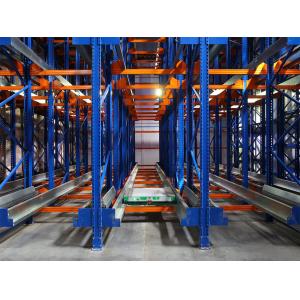

The Shitong High Density Radio Shuttle Racking System is designed
to maximize storage utilization in warehouses where space is at a
premium. By eliminating the need for forklifts to enter the storage
lanes, this system reduces aisle space and allows pallets to be
stored up to 80% more densely compared to traditional selective
racking.
How It Works
Forklifts place pallets at the channel entry. The radio shuttle,
operated by remote control or tablet, carries the pallet to its
designated position inside the channel. Retrieval follows the same
principle in reverse. This semi-automated process ensures high
efficiency and minimal forklift travel.
Technical Highlights
Channel depth: up to 12–20 pallets deep.
Shuttle load capacity: 1,000–1,500 kg per pallet.
Travel speed: 0.8–1.0 m/s loaded, faster when empty.
Multi-shuttle operation supported for higher throughput.
Customer Benefits
Higher density storage, maximizing cubic utilization.
Faster loading and unloading operations with fewer forklift
movements.
Improved operator safety by restricting forklifts to the rack ends.
Flexible design compatible with different pallet types and
warehouse layouts.
Applications
Food and beverage manufacturers, 3PL distribution hubs, and any
facility where maximizing space and efficiency are top priorities.
FAQ:
1. How can you get a quote as quickly as possible?
For racks with specific dimensions, please tell us:
1) the rack dimensions you require. Height×Depth×Length?
2) the maximum load requirement for each layer.
3) how many layers for one independent rack consists of?
4) The specific quantity of racks you need.
For warehouses that need to provide rack drawings, please tell us:
1) Your pallet size, and which dimension of the pallet is for the
forklift's entry direction?
2) The maximum height and maximum load requirements for one pallet
plus cargo.
3) Provide your warehouse drawing.
2. Does pallet size affect the dimensions of the cross-beam
racking?
Yes. Pallet size affects the width, depth, rack height, and
load-carrying design of the pallet racking. The specific dimensions
of the racking must be determined based on the pallet size.
3. What is your packaging method?
All goods packed with plastic wrap and fix with steel tape. Ensure
all goods can be moved by forklift.
