NBR/TPU Step-Free Buffer Gasket for Mini Cylinders | Eliminate
End-Stroke Impact in Compact Spaces
Solve Miniaturization Challenges: Achieve smooth, quiet, and
reliable cushioning in miniature and dual-axis cylinders where
traditional stepped buffers cannot fit.
Product Overview: Precision Buffering, Suitable for Compact Design

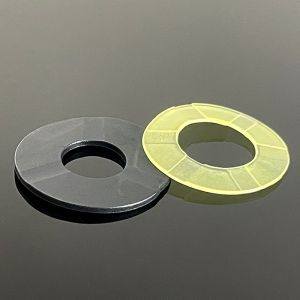

Our high-hardness NBR/TPU material stepless buffer gasket is a
cleverly conceived, simple yet crucial component, specifically
designed for micro and dual-axis cylinders with extremely limited
internal space. Unlike bulky traditional stepped buffers, this
flat, high-performance gasket can directly provide effective
deceleration and impact absorption at the end cap, ensuring smooth
operation and significantly extending the service life of compact
pneumatic actuators.
Ideal Applications: Mini cylinders, dual-axis cylinders, guided
cylinders, and other compact pneumatic actuators where internal
space is precious.
Key Features & Unmatched Benefits
- True Step-Free Design: Ultra-thin, flat profile installs easily in cylinders with no room
for conventional stepped buffers.
- Exceptional Wear Resistance: Made from high-grade NBR (Standard) or TPU (High-Performance),
offering outstanding abrasion resistance for millions of cycles.
- High Hardness for Effective Damping: Specially formulated compounds provide the optimal hardness to
absorb impact energy without compromising sealing.
- Reduced Noise & Vibration: Effectively dampens the metallic "clang" at end-of-stroke,
creating quieter machinery.
- Easy Installation: A simple drop-in component that requires no modification to your
cylinder.
Technical Specifications
| Parameter | Standard (NBR) | High-Performance (TPU) |
|---|
| Primary Material | Nitrile Butadiene Rubber (NBR) | Thermoplastic Polyurethane (TPU) |
| Hardness (Shore A) | 80° ±5 | 90° ±5 |
| Temperature Range | -30°C to +100°C | -40°C to +110°C |
Material Selection Guide
- Choose NBR (Standard): For most general industrial applications. Excellent balance of
cost and performance, with good resistance to lubricants and wear.
- Choose TPU (Premium): For high-cycle applications, higher speeds, or where maximum
service life is critical. Superior abrasion resistance and
mechanical strength.
Applications: Where It Makes a Difference
This buffer gasket is essential in precision automation equipment
using compact pneumatic actuators:
- Electronics Assembly: PCB handling, component insertion, mini pick-and-place units.
- Medical & Laboratory Automation: Diagnostic equipment, sample handling, precision fluid dispensing.
- Robotics: Small robotic grippers and end-effectors.
- Packaging Machinery: Small product sorting and positioning.
- Precision Instrumentation: Optical lens adjustment, sensor actuation.
