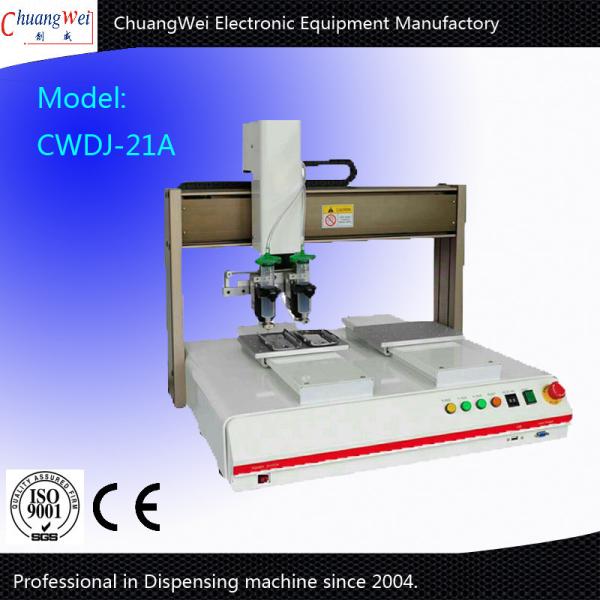

Automated Dispensing Machines Adhesive Robot Dispensing Machine

Automated Dispensing Machines Adhesive Robot Dispensing Machine

Our business partners :

Features for gllue dispensing machine :

1 , Function : Drawing point , line , surface , arc , circle , irregular curve continuous complement and triaxial linkage .
2 , The software has the area display , translation rotating operation functions .
3 , Can set glue size , glue speed , dispensing time , stopping glue time . Stable glue

exudation without glue leaking and dripping .
4 , According to the production process , work platform can be installed with positioning PIN ,

Specification for glue dispensing machine :

Model	CWDJ-220D	CWDJ-330D	CWDJ-440D	CWDJ-550D
Work area (X/Y/Z)mm	20020050	300300100	400400100	500500150
Max. speed(mm/see)	0.1~500/350	0.1~800/500	0.1~800/500	0.1~800/500
Dimensions(WDH mm)	385380500	485505610	585610610	685700660
Resolution	0.01mm/Axis
Repeatability	+/-0.01mm/Axis
Operation interface	LCD touch panel/Handhold control box
Drive mode	Micro stepping motor/belt
Power	AC220V 50-60HZ 0.8KW
Net weight	23kg	34kg	41kg	52kg
Operation environment	Humidity:20-90% RH, Temperature:0-40°C
Date storage type	CF Card
