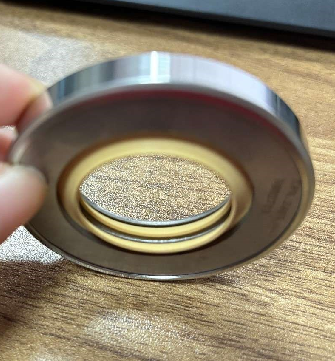

Motor Water Oil Seal (Two-Layer) for Tesla Model S (2012–2016) | 1002713-02-D (CFN Brand)

Core Functions & Dual-Seal Advantages

1. Dual-Barrier Sealing (Water + Oil):
   The “two-layer” design integrates a water-resistant outer lip and an oil-retention inner lip:
   • Outer Layer: Made of nitrile rubber with a hydrophilic coating, it blocks external water, dust, or road spray from entering the motor (critical for driving in rain, snow, or puddles);
   • Inner Layer: Features a high-tensile rubber lip that retains the motor’s internal lubricating oil, preventing leakage onto other components (e.g., wiring harnesses) and maintaining proper lubrication for the motor shaft.
2. High-Temperature & Wear Resistance:
   Withstands the Model S motor’s operating temperature range (-30°C to 120°C)—no hardening in cold weather or softening in high-heat conditions. The seal’s contact surface with the motor shaft uses a polytetrafluoroethylene (PTFE) coating, reducing friction and wear (supports up to 10,000 hours of continuous motor operation).
3. Vibration Compensation:
   The flexible rubber body absorbs motor vibration during operation, ensuring the seal remains tightly fitted to the shaft and housing—avoiding gaps that could lead to fluid leakage or contamination.

Durable Construction & Technical Specs

Application & Installation Tips

• Critical Note: Exclusively for 2012–2016 Tesla Model S electric motors—not compatible with post-2017 Model S (redesigned motor) or other Tesla models (Model 3/Y/X). Installing on incompatible motors will cause sealing failure.
• Installation Requirements (Professional Only):
  1. Disassemble the motor housing (follow Tesla’s 2012–2016 Model S service manual) and remove the old seal (use a seal pick tool to avoid damaging the shaft or housing).
  2. Clean the shaft and housing groove with a lint-free cloth (remove old oil, debris, or rubber residue—any contamination will compromise sealing).
  3. Apply a thin layer of Tesla-specified motor oil to the seal’s inner lip (aids installation and initial lubrication), then press the seal into the housing groove (ensure it sits flush, no tilting).
  4. Reassemble the motor and test for leaks (run the motor at idle for 30 minutes, then inspect for oil/water traces).
• Replacement Scenario: Replace if the motor shows signs of water intrusion (e.g., abnormal noise, reduced performance) or oil leakage (visible oil stains on the motor exterior).

Package Specifications

• Package Content: 1 × Two-layer motor water oil seal (1002713-02-D) + 1 × Packet of cleaning wipes (for pre-installation surface preparation).
