    Industrial Air Curtain with Powerful Air Volume 30m/s 380V Power Supply and 2600-6500CFM for Factory Warehouse

    Ask Lasest Price
    Brand Name : Theodoor
    Model Number : FM-6509A
    Certification : CCC
    Price : $299
    • Product Details
    • Company Profile

    Industrial Air Curtain with Powerful Air Volume 30m/s 380V Power Supply and 2600-6500CFM for Factory Warehouse

    Product Description

    Industry Air Curtain Powerful Air Volume 30m/s For Factory Warehouse Terminal Opening Door


    Fine workmanship

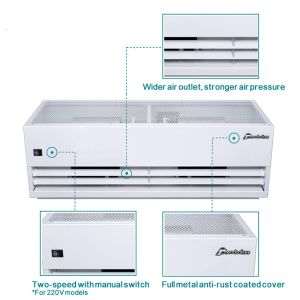

    The square reinforced structure is made from galvanized steel with powder coated, sturdy and durable which is never being deformed.

    Powerful airflow

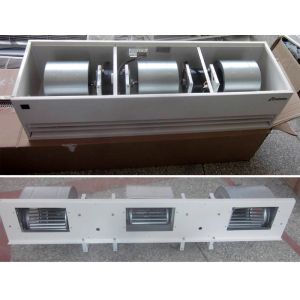

    Centrifugal Metal fan blower (Fan diameter Φ160) supply powerful airflow. Large air outlet and higher air velocity reach up to 30m/s create more sufficient air volume.

    Stable performance

    The centrifugal turbine fan is made from steel which is safe and durable. The high velocity powerful motor can meet the higher installation and special environments.


    Extra wind force Air Curtain for special situations.


    Application: installation in plant, cold storage, garage, workshop and other industries use.


    Specifications:


    Model

    Dia. of fan wheel
    (mm)

    Dimension
    (mm)

    Voltage

    Frequency
    (V /Hz)

    Motor power
    (W)

    Air volume
    (m3/h)

    Air velocity
    (m/s)

    number

    of fan
    (pc)

    Noise (dB)

    Effective
    (m)

    FM-6509A

    Φ160

    900*352*306

    380 /60

    1350

    4510

    30

    2

    70

    7-8

    FM-6510A

    1000*352*306

    380 /60

    1450

    4950

    30

    2

    70

    7-8

    FM-6512A

    1200*352*306

    380 /60

    2100

    6760

    30

    3

    71

    7-8

    FM-6515A

    1500*352*306

    380 /60

    2700

    9000

    30

    4

    72

    7-8

    FM-6518A

    1800*352*306

    380 /60

    2900

    10000

    30

    4

    73

    7-8

    FM-6520A

    2000*352*306

    380 /60

    3400

    11200

    30

    5

    74

    7-8


    Company Information

    FAQ

    What's the main functions of Air Curtain?

    1. Dust-proof, insect prevention

    2. Isolate the smell

    3. Energy saving

    4. Comfortable heating

    How to select suitable air curtain?

    There are many factors that we have to consider when selecting an air curtain, some of which are listed below:

    1. Application

    2. Door height

    3. Door width

    4. Outside wind

    5. Building static pressure

    6. Door structure

    7. Ambient temperature

    8. Air curtain size

    9. Air curtain design and look

    10. Noise level

    11. Power consumption
