    High Precision Fiber Laser Marking Machine Metal 50w Fiber Laser Marker 200×200mm

    Ask Lasest Price
    Brand Name : Temei
    Model Number : TM-LF50W
    Price : 2700usd Starting from
    Payment Terms : T/T
    Supply Ability : 1,000 units per month
    Delivery Time : 3~7day
    • Product Details
    • Company Profile

    High Precision Fiber Laser Marking Machine Metal 50w Fiber Laser Marker 200×200mm

    The Temei Fiber Laser Marking Machine delivers high-precision marking performance, boasting a maximum marking speed of ≤7000mm/s. It supports the import and processing of various graphic file formats, such as AI, PLT, DXF, and BMP, among others.

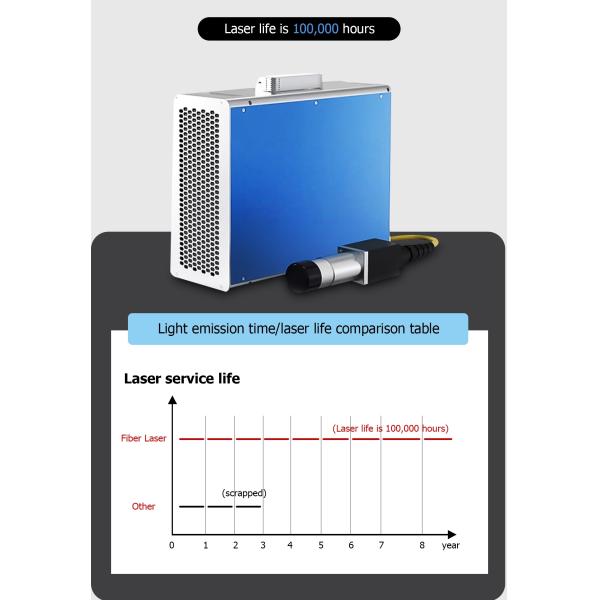

    In terms of core features, the machine adopts an air cooling system for stable heat dissipation. Its fiber laser source is designed for long service life, with an operational lifespan ranging from 70,000 to 100,000 hours. It is also compatible with a wide range of materials, including metals, leather, and acrylic.

    Additionally, this marking machine is capable of creating deep marks, with a maximum marking depth of up to 1mm. To simplify user operation, it comes equipped with EZCAD software, ensuring a smooth and efficient workflow during the marking process.
    Material Application
    1. All metals: Gold, Silver, Titanium, Copper, Alloy, Aluminum, Steel, Manganese Steel, Magnesium, Zinc, Stainless Steel, Carbon Steel/ Low Carbon Steel, Various Alloy Steels, Electrolytic Sheets, Brass Sheets, Galvanized Sheets, Aluminum, Various Alloy Sheets, Various Metal Sheets, Rare Metals, Coated Metals, Anodized Aluminum, and other special surface treatment processes, such as oxygen decomposition electroplating treatment on the surface of aluminum-magnesium alloys.
    2. Non-metallic materials: Non-metallic coating materials, industrial plastics, hard plastics, rubber, ceramics, resins, cartons, leather, clothing, wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin materials.

    Configuration parameters


    NameFiber Laser Marking Machine
    ModelTM-LF50W
    Working Size200x200mm
    Laser SourceFiber laser(MAX/Raycus)
    Laser Power50W
    Laser wavelength1064±5nm
    Spot Diameter0.015mm
    GalvanometerSINO-GALVO
    Field LensHigh-definition quartz field lens
    Cooling ModeAir cooling
    Montor and Host computerIndustrial control computer
    Control SoftwareEZCAD
    Lifting ShaftHand-cranked lifting system
    Working TableHigh-precision aluminum plate
    Repe.Positioning Accuracy0.002mm
    Minimum Line Width0.01mm
    Minimum Character0.15mm
    Marking Speed≤7000mm/s
    Marking Depth≤1 mm(depending on material)
    Power supply220V,50/60Hz
    Supported Graphic FormatsDXF,AI,BMP,PLT
    Dimensions650x800x1470mm
    Net Weight80kgs
    Application MaterialsCarbonsteel,Stainless steel,Aluminum,Copper
    and other metal and Rigid platstics etc.

    Packaging method
