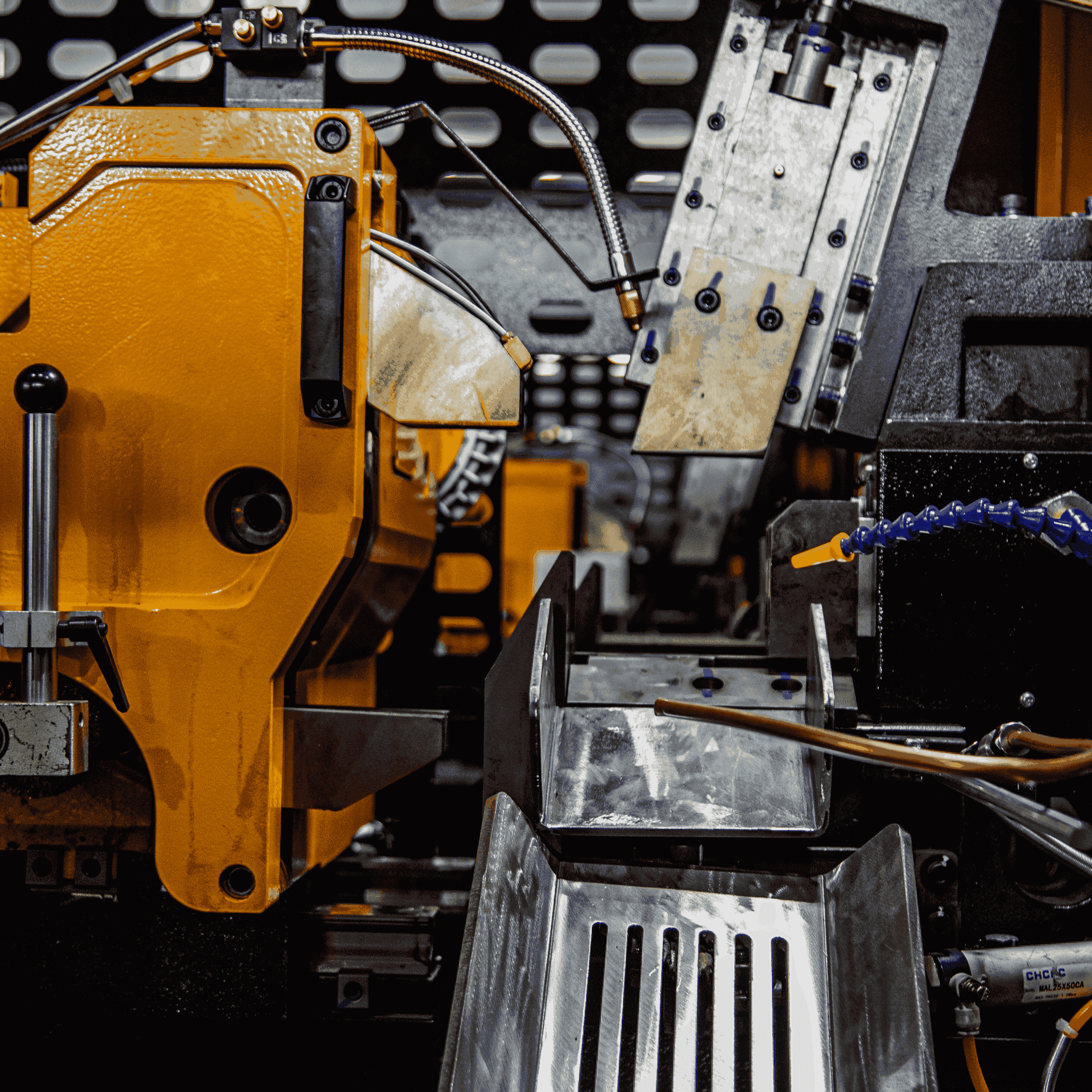

JSSCD-180NC/P CNC High Speed Circular Saw Machine(Horizontal-Push)
Description
To address the challenges of high-efficiency and high-precision
cutting of metal profiles, particularly for horizontal cutting
operations, this CNC high-speed circular sawing machine was
developed. It perfectly integrates high-speed cutting capability,
automated control, precision machining efficiency, and
environmental features. With outstanding performance and
reliability, it plays a crucial role on modern metal processing
production lines.
This equipment is the ideal choice for precision cutting of various
metal profiles such as round tubes, angle steel, and square tubes.
Its core advantage lies in the innovative horizontal plunge cutting technology (driven by an AC Servo Motor coupled with a ball screw). This
technology ensures smoothness and controllability throughout the
entire cutting process. Combined with the optimized workpiece clamping solution (utilizing hydraulic horizontal/vertical clamps), it significantly
reduces reliance on frequent fixture changes, greatly enhances the
machine's compatibility and processing flexibility for materials of
different specifications and shapes, and easily handles diverse
cutting tasks. Thanks to high-strength materials and the precisely
designed transmission and clamping systems, workpieces remain
securely fixed even during high-speed operation, effectively
preventing displacement. This guarantees precision in every cut and
excellent repeatability. This characteristic makes it particularly
suitable for continuous production environments with stringent
demands on cutting efficiency and stability.

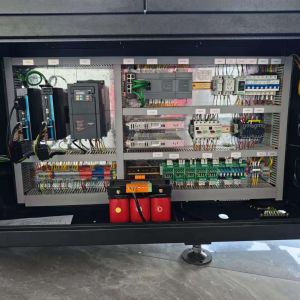

The heart of the equipment is the intelligent CNC module. This module precisely regulates cutting speed, angle, and other
core process parameters to ensure efficient and accurate cutting
results, ensuring every product meets high standards. The
high-precision CNC system, combined with an intuitive Human-Machine
Interface (HMI), makes operation extremely convenient. Operators
can preset parameters and store multiple machining programs through
the user-friendly interface, achieving a high degree of automation
in the production process. This not only significantly reduces
manual labor intensity but also effectively minimizes human errors.
To pursue higher productivity, users can opt for a high-performance automatic feeding system. This system enables continuous automatic feeding of material,
working in synergy with the machine's horizontal cutting mode to
support uninterrupted batch processing. This maximizes equipment
utilization and overall production efficiency, perfectly aligning
with enterprises' needs for large-scale, fast-paced production.
Long-lasting, stable precision assurance is another highlight of the equipment. A gear backlash
compensation device (also utilizing an AC Servo Motor and ball
screw) ensures the machine maintains precision during long-term
operation. A reliable hydraulic system (providing rated stable
pressure and sufficient oil volume) powers the clamping and partial
driving functions. A self-lubrication system (timed, quantitative
forced oil supply) and a tool micro-lubrication system (pneumatic
reciprocating, quasi-dry intermittent oil supply) work together to
significantly reduce wear on key components, effectively extend
equipment lifespan, and ensure stable operation over extended
periods. A saw chip removal device (using a hollow external
rotation magnetic powder brake) promptly clears chips, keeping the
work area clean and enhancing equipment safety and maintenance
convenience. A part separation device (equipped with carbide
parallel blocks) ensures orderly separation of workpieces after
cutting.
In summary, this horizontal cutting high-speed circular sawing
machine can confidently meet the challenges of high-volume
continuous production while satisfying stringent high-precision
machining requirements. It is an excellent solution for enterprises
seeking to enhance production efficiency, optimize processing
quality, and reduce overall operating costs. Through its
intelligent control, advanced horizontal cutting technology, and
scalable automation capabilities, this equipment can significantly
improve material utilization, reduce waste, shorten production
cycles, and decrease reliance on manual labor. For metal processing
enterprises committed to enhancing core competitiveness and moving
towards intelligent manufacturing, this stable, reliable,
efficient, and intelligent horizontal circular sawing machine is
the ideal equipment for modern processing workshops, injecting
strong momentum into the enterprise's sustainable development and
efficient operation.
Specifications:
| Model | Unit | JSSCD-180NC/P |
| Mainframe dimensions | mm | 2240*1790*1800 |
| Bar & round pipe | mm | 50-180 |
| Angle bar & square bar | mm | 50-155 |
| Saw blade size | mm | φ520*3.0*φ50 |
| Pin holes and hole diameters | mm | 4*φ16*80 φ50 |
| Spindle motor power | KW | 22(6P) |
| Spindle speed | rpm | 20-100 |
| Feed servo motor power | KW | 2.8 |
| Feeding servo motor power | KW | 2.8 |
| Material removal length at the front end | mm | 10-99 |
| Single feeding length(repeatable) | mm | 10-800 |
| Hydraulic drive motor power | KW | 3.75 |
| Rated pressure of the hydraulic system | mpa | 5.5 |
| Hydraulic oil capacity | L | 110 |
| Cut off feed mode |
| AC servo motor & ball screw / horizontal entry |
| Main clamping method |
| Hydraulic type / one set each for horizontal and 15° |
| Saw blade debris removal device |
| Passive/active circular wire brush (optional) |
| Gear backlash compensation device |
| Hollow external rotating magnetic powder brake |
| Feeding drive mode |
| AC servo motor & ball screw |
| Feeding clamp method |
| Hydraulic type/Horizontal clamping |
| Residual material length at the rear end | mm | 90&a(a represents the length less than one cut-off workpiece) |
| Self-lubrication oil system |
| Timed and quantitative forced oil supply |
| Micro-lubrication system for cutting |
| Quasi-dry intermittent oil supply |
| Material separating device |
| Pneumatic reciprocating |
| Long material receiving device |
| Optional |
| Blade swing anti-vibration device |
| Tungsten carbide parallel block |
FAQ
Q1: Are you a manufacturer or a trading company?
A:We are a professional manufacturer of saw blade grinders. We have a
30,000 square meter factory and a team of dedicated technicians
specializing in design, manufacturing, and sales.
Q2. Where is your factory located?
A:Our factory is located in Nantong City, Jiangsu Province, China.
It will takes about 1.5 hours from Shanghai Hongqiao station to our
city
Q3: What is your factory acceptance test method?
A: You can send us sample material to be cut, and we will perform a
test cut using our machine. After the test is complete, we will
provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for
your confirmation.)
Q4:What is your method of transaction?
A:We adopt the FOB(Free ON Board) transaction.
Q5: How about your delivery time?
A: Generally, it will take 7-60 work days after receiving your order.
The specific delivery time depends on the items and the quantity of
your order.
Q6:How about the payment term
A:T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)
Q7:Does the band saw blade have any international certifications?
A:Yes,we have obtained CE,ISO international certification.
