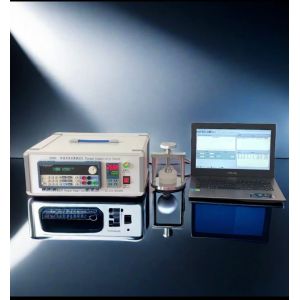

HD-KDRX-II Thermal Conductivity Tester
(Hot Wire Method)

Technical Parameters
| Item | Parameters |
| Thermal conductivity range | 0.0001~50 W/mK; resolution: 0.0001w/mk |
| Measurement relative error | ≤3% |
| Repeatability error | ≤3% |
| Temperature resolution | 0.01℃ |
| Measuring time | 2~180 seconds |
| Sample test temperature range | Room temperature (Various high and low temperature control chamber or test states under vacuum can be optional according to customer requirements) |
| Tested samples | Plastic, soil, soft rock, liquid; paste, granule, powder and other materials |
| Sample shape | Block, flake, paste, powder, granule, colloid, liquid (round, square, irregular shape, no restrictions on shape), only a relatively flat sample surface is required |
| Sample size | Cylindrical samples, ≥φ30 mm; Square samples, 30*30mm; Irregular samples, thickness ≥1mm |
| Control mode | By computer and software |
| Machine dimension | (L*W*H)380*400*165mm |
| Machine weight | Approx. 5KG |
| Power | AC 220V±10%, 50/60 Hz, 200W |
