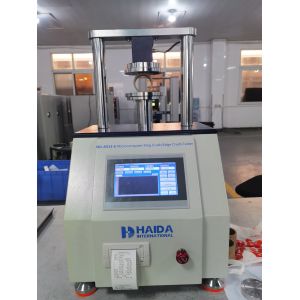

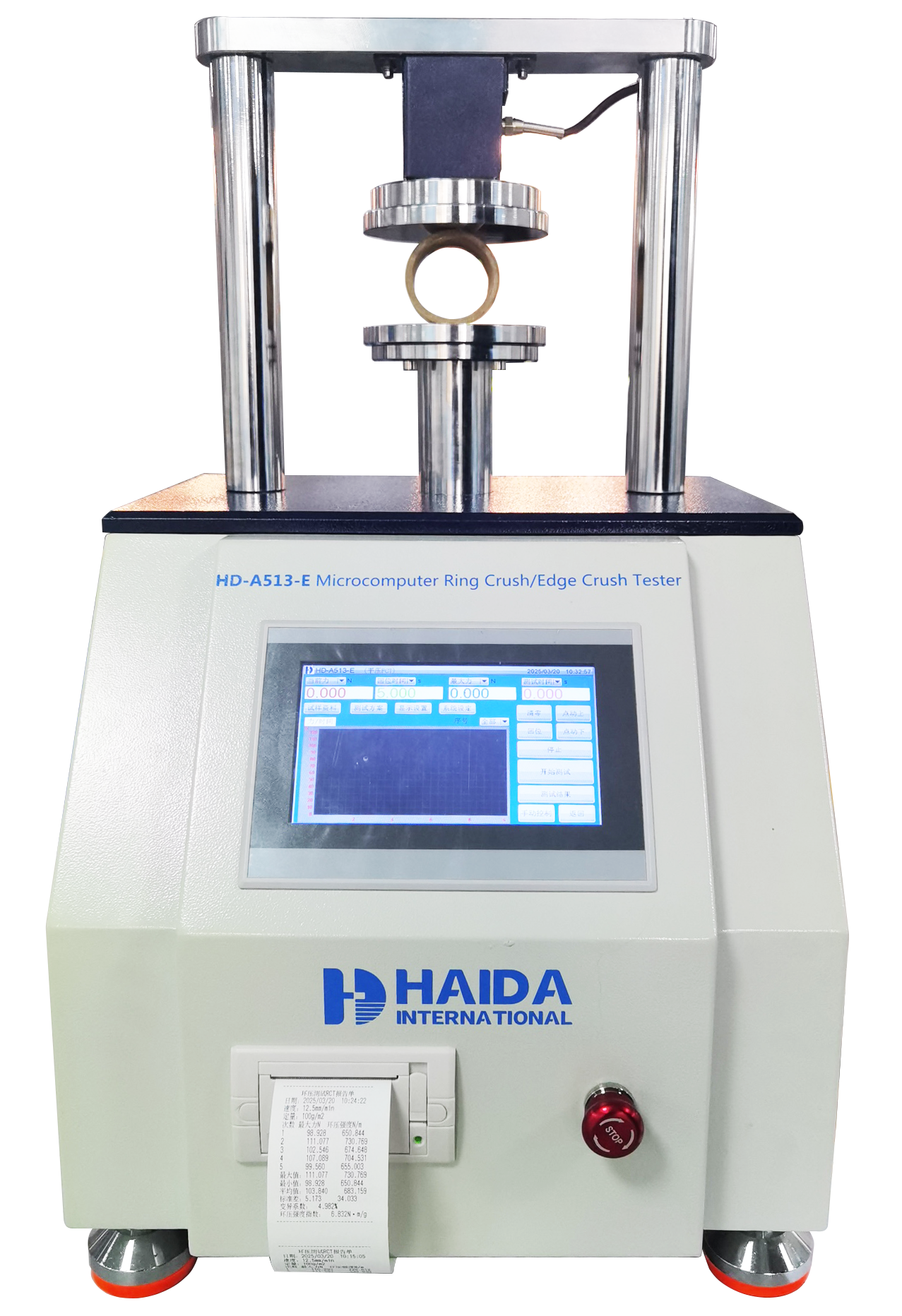

    HD-A513-E Paper Tube Crush Test Machine 5KN Capacity

    Ask Lasest Price
    Brand Name : Haida
    Model Number : HD-A513-E
    Certification : CE、ISO
    Price : Negotiation
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability : 300 Sets per Month
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    HD-A513-E Paper Tube Crush Test Machine 5KN Capacity

    EQUIPMENT DETAILS OF HD-A513-E PAPER TUBE CRUSH TEST MACHINE

    GENERL SPECIFICATIONS
    Packaging Dimensions: (WxDxH) 700*650*920mm
    Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
    Gross Weight: 110kg
    STANDARD FEATURES
    ItemDescription
    Max. Capacity500kg(5KN)
    Control modeTouch screen
    Load Resolution1/250,000
    UnitKgf, Ibf, N
    Load accuracyWithin± 0.5%
    Max.Resolution0.02N
    Result OutputMini-printer (thermal printer)
    Test speed(12±0.5) mm/min
    Plate Stroke0.1~120mm
    Plate diameterφ120mm
    Platen parallelism≤0.06mm
    StatisticsMean value, max. & min values of the series
    Power220V, 220W
    Dimension&Weight(LxWxH) 400 × 400 × 650mm, 40kg
