    12V 60W LED Light Driver High PFC Constant Voltage Single Output Switching Power Supply

    Ask Lasest Price
    Brand Name : KSPOWER
    Model Number : KSET-60W12
    Price : $13.60/pieces 5-499 pieces
    • Product Details
    • Company Profile

    12V 60W LED Light Driver High PFC Constant Voltage Single Output Switching Power Supply


    12V 60W LED Light Driver High PFC Constant Voltage Single Output Switching Power Supply

    Products Description:

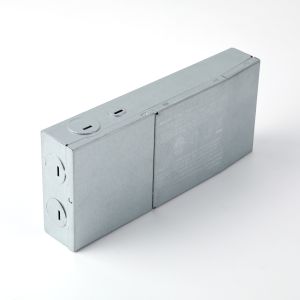

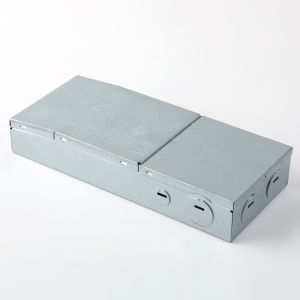

    The phase dimmable led driver is one 120VAC Input voltage, 40 Watt 24VDC / 12VDC output North America indoor junction box LED Driver certified to meet ETL/cETL Class 2 safety approvals. The Dimmable Power Supply use low profile iron case with junction box to enable easy installation makes led driver the power solutions for led tape/strip, modules, LED bar light. Featuring US Level VI energy efficiency standards of up to 90% and higher, IP20 environment Protection Rating, Constant Voltage LED Driver can use for indoor lighting and provide outstanding dimming peformance.
    Features:
    . Super compact IRON CASE
    . ETL/cETL Class 2 RoHS
    . IP20 - Indoor Use
    . Auto-Reset Protection for input/output overvoltage protection, input/output overcurrent protection, over temperature protection, over power protection and short circuit protection
    Features:
    * 100-120Vac 60Hz & 200-240Vac 50Hz Input
    * 12V/ 24V PWM Output
    * Single Channel & Constant Voltage mode
    * Enclosure With Junction Box
    * ETL cETL Class2 CE Cert
    * Enclosure: LISTED Enclosure with input and output wire
    * For Forward & Reverse Phase, MLV, ELV
    * High Power Factor, PF≥0.95
    * Full Dimming Range:0-100%
    * Flicker-Free
    * Continuous & Smooth & Stable
    * Protections: OCP, OVP, SCP, OTP
    *For Dry Indoor Location
    * 3 Years Warranty
    Specification:
    Model No.
    Output Power
    Output Voltage
    Output Current
    Efficiency
    Dimension
    KSE-24W
    20W
    12V/24V
    1.7A/0.84A
    ≥88%


    (7.9*3.34*1.45)inch
    200*85*37MM
    KSE-40W
    40W
    12V/24V
    3.34A/1.67A
    ≥88%

    KSE-60W
    60W
    12V/24V
    5A/2.5A
    ≥88%

    KSE-80W
    80W
    24V
    3.33A
    ≥88%

    KSE-96W
    96W
    24V
    4.0A
    ≥88%




    Dimming TypeSeriesPowerModel
    (xx=output voltage)
    Output voltageOutput currentInput voltagePFLocationSize
    Triac/Phase-cutET20WZH-EAC20W12-T12V1.7A100-120V 60Hz&200-240V 50Hz≥0.95Dry/Damp/Wet200*85*37mm
    ZH-EAC20W24-T24V0.84A
    40WZH-EAC40W12-T12V3.34A
    ZH-EAC40W24-T24V1.67A
    60WZH-EAC60W12-T12V5A
    ZH-EAC60W24-T24V2.5A
    80WZH-EAC80W24-T24V3.33A
    96WZH-EA100W24-T24V4A
